Back to Doors

Aluminium profiled doors

Durable and robust doors based on aluminium profiles.

Aluminium Profiled Doors from DAKO

A safe and energy-efficient solution, dedicated to modern investment facilities or public buildings.

  • Different levels of thermal insulation – depending on the chosen door system – can offer the perfect or optimal thermal insulation
  • Great safety and many other features that come as standard
  • Spectacular design – perfectly combined with modern public facilities
  • Robustness and durability – guaranteed thanks to the use of damage-resistant and weather-resistant aluminium
  • A frequently chosen option for large investment properties. Appreciated for its functionality, appearance and many standard features
Drzwi profilowane DA-90 Thermo
Generate PDF file
Uw*

0,9 W/m2K

Glazing package

Triple glazing package 33,1x18x4x18x33,1 warm black border TGI

Profile name

DA-90 Thermo

Max. sash width

1300 mm

Max. sash height

3000 mm

Full specification

Profiled Doors DA-90 Thermo

Thermal efficiency
Uw*
0,9 W/m2K
*
doors reference 1230 mm x 2180 mm
Profile
Profile name
DA-90 Thermo
Installation depth
Sash: 90 mm | Frame: 90 mm
Number of chambers
3
Thermal break
34 mm wide thermal break made of glass fibre reinforced polyamide | additional insulating insert in the middle chamber
Number of seals
Two EPDM dual-component synthetic rubber seals
Glass
Glazing package
Triple glazing package 33,1x18x4x18x33,1 warm black border TGI
Ug value
0,5 W/m2K
Package thickness
glazing thickness available: from 14 to 73 mm
Sound insulation of available glazing
Rw: from 31 to 47 dB
Fitting
Type
Door fittings
Hinges
ROLLER HINGES A durable and stable solution with an elegant appearance. Adjustable in three planes. They guarantee smooth door operation and increase the level of security. Standard color: white, brown, silver | Optional color: the color of the joinery
Anti-Theft protection
anti-theft bolts
Micro-ventilation
---
Other
---
Handle
Colours
Standard color: white, brown, silver
Handle model
Handle on a long backplate made of high quality aluminum.
Insert
Insert type
Class B insert
Lock
Lock type
3-point locking system manual
Sash size
Min. sash width
900 mm
Max. sash width
1300 mm
Min. sash height
2050 mm
Max. sash height
3000 mm
Max. sash weight
180 kg
Max. sash area
---

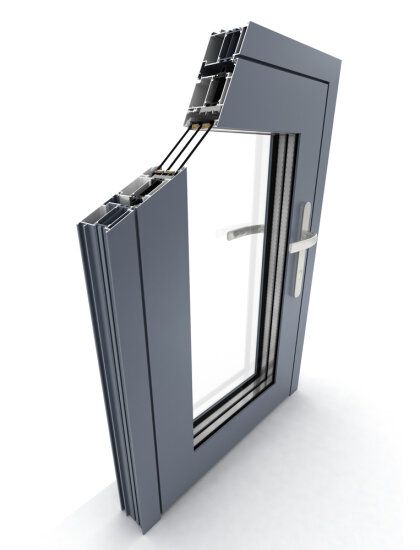

Profiled Doors DA-77

Thermal efficiency
Uw*
1,2 W/m2K
*
doors reference 1230 mm x 2180 mm
Profile
Profile name
DA-77
Installation depth
Sash: 77 mm | Frame: 77 mm
Number of chambers
4
Thermal break
31 mm glass-fibre reinforced polyamide thermal breaks
Number of seals
Two EPDM dual-component synthetic rubber seals
Glass
Glazing package
Triple glazing package 33,1x18x4x18x33,1
Ug value
0,5 W/m2K
Package thickness
glazing thickness available: from 14 to 58 mm
Sound insulation of available glazing
---
Fitting
Type
---
Hinges
SURFACE HINGES Durable and stable hinges adjustable in three planes. They guarantee smooth door operation and increase safety. Standard color: white, brown, silver | Optional colors: Joinery color
Anti-Theft protection
---
Micro-ventilation
---
Other
---
Handle
Colours
Standard color: white, brown, silver
Handle model
Handle on a long backplate made of high quality aluminum.
Insert
Insert type
Construction insert
Lock
Lock type
1-point locking system with a classic latch-bolt mechanism
Sash size
Min. sash width
900 mm
Max. sash width
1400 mm
Min. sash height
2050 mm
Max. sash height
3000 mm
Max. sash weight
180 kg
Max. sash area
---

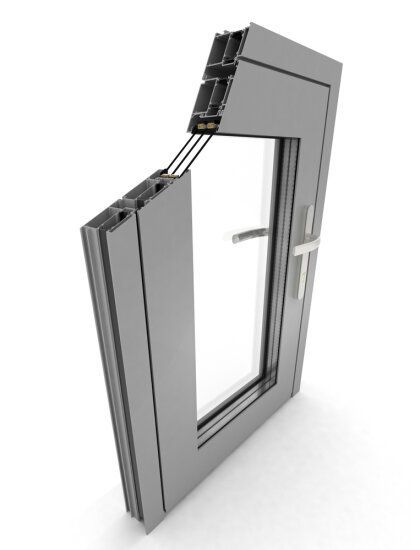

Profiled Doors DA-65

Thermal efficiency
Uw*
1,7 W/m2K
*
doors reference 1230 mm x 2180 mm
Profile
Profile name
DA-65
Installation depth
Sash: 65 mm | Frame: 65 mm
Number of chambers
3
Thermal break
24 mm glass-fibre reinforced polyamide thermal breaks
Number of seals
Two EPDM dual-component synthetic rubber seals
Glass
Glazing package
Double glazing package 33,1x16x33,1
Ug value
1,1 W/m2K
Package thickness
glazing thickness available: from 4 to 51 mm
Sound insulation of available glazing
---
Fitting
Type
Door fittings
Hinges
SURFACE HINGES Durable and stable hinges adjustable in three planes. They guarantee smooth door operation and increase safety. Standard color: white, brown, silver | Optional colors: Joinery color
Anti-Theft protection
anti-theft bolts
Micro-ventilation
---
Other
---
Handle
Colours
Standard color: white, brown, silver
Handle model
Handle on a long backplate made of high quality aluminum.
Insert
Insert type
Construction insert
Lock
Lock type
1-point locking system with a classic latch-bolt mechanism
Sash size
Min. sash width
900 mm
Max. sash width
1300 mm
Min. sash height
2050 mm
Max. sash height
2400 mm
Max. sash weight
180 kg
Max. sash area
---

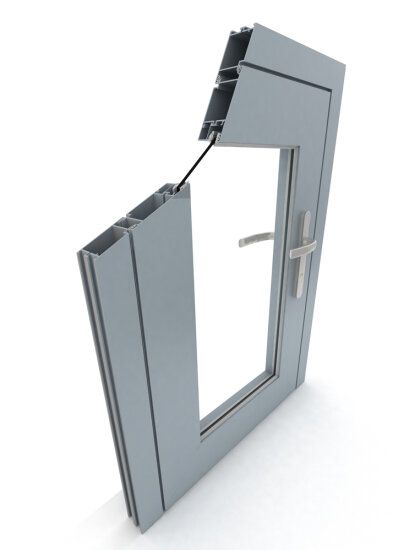

Profiled Doors DA-45 (internal system)

Thermal efficiency
Uw*
6,0 W/m2K
*
doors reference 1230 mm x 2180 mm
Profile
Profile name
DA-45
Installation depth
Sash: 45 mm | Frame: 45 mm
Number of chambers
1
Thermal break
none
Number of seals
Two EPDM dual-component synthetic rubber seals
Glass
Glazing package
Single 33,1 mm
Ug value
5,7 W/m2K
Package thickness
Glazing thickness available from 4 to 25 mm
Sound insulation of available glazing
---
Fitting
Type
---
Hinges
SURFACE HINGES Durable and stable hinges adjustable in three planes. They guarantee smooth door operation and increase safety. Standard color: white, brown, silver | Optional colors: Joinery color
Anti-Theft protection
---
Micro-ventilation
---
Other
---
Handle
Colours
Standard color: white, brown, silver | Optional color: stainless steel, old gold, woodwork color
Handle model
Handle on a long backplate made of high quality aluminum.
Insert
Insert type
Construction insert
Lock
Lock type
1-point locking system with a classic latch-bolt mechanism
Sash size
Min. sash width
900 mm
Max. sash width
1250 mm
Min. sash height
2050 mm
Max. sash height
2400 mm
Max. sash weight
180 kg
Max. sash area
---

Aluminium profiled doors features

Threshold (standard)

Threshold (standard)

Details
Threshold (optional)

Threshold (optional)

Details
Optional equipment

Optional equipment

Details

Colours of aluminium profiled doors

RAL 9016 White
Silver - RAL 9006
RAL 8019
RAL palette color

The colours presented are just a visualization and may be different from the actual colours.

Modern design and high quality - these are the elements that make our aluminium profiled doors the most popular choice among customers and designers of public facilities.

The material, from which the door is made, is highly resistant to weather conditions, including temperature fluctuations. Doors made of aluminium do not deform through intense sunlight or rain. Thus, when buying aluminium doors, we choose a product that does not require periodic restoration and can last us in an unchanged state for many years.

Many great inclusive features guarantee a great final product, meeting the requirements of the building code.

The possibility to choose from several systems makes it possible for each investor to choose the one that best meets their requirements in terms of thermal insulation properties or safety level.

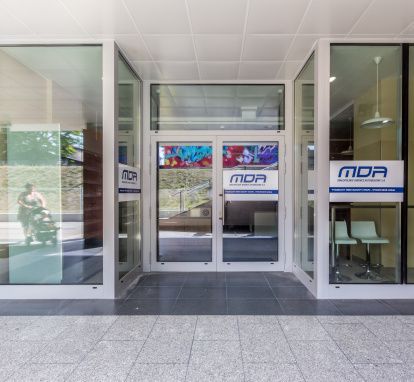

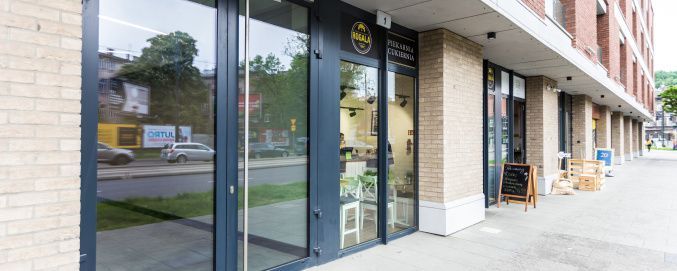

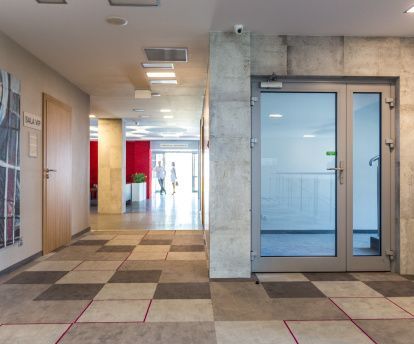

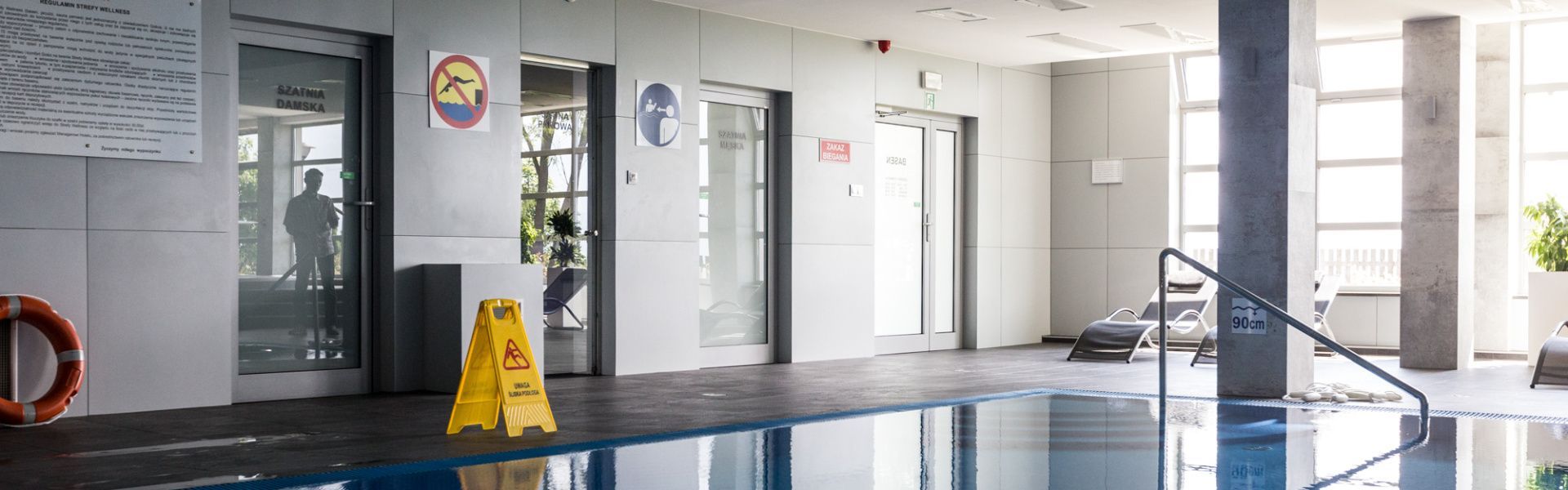

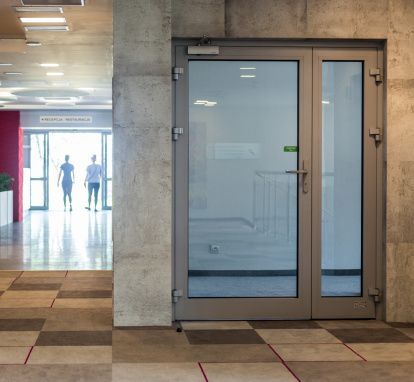

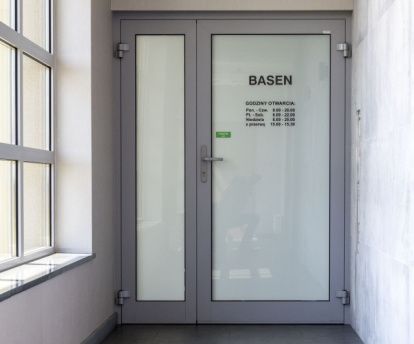

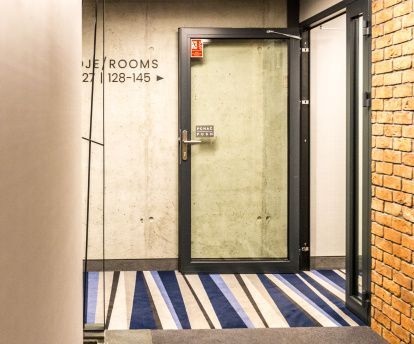

Aluminium profiled doors in projects
