DK-ZFN top-mounted blinds

A warm solution for new and renovated buildings

DK-ZFN top-mounted window blinds - DAKO Manufacturer

The installation of this type of blind should be considered at the design stage of the building, so that the size of the window opening also takes into account the presence of the box. Therefore, we recommend them for new buildings and when replacing existing windows (e.g., during renovations).

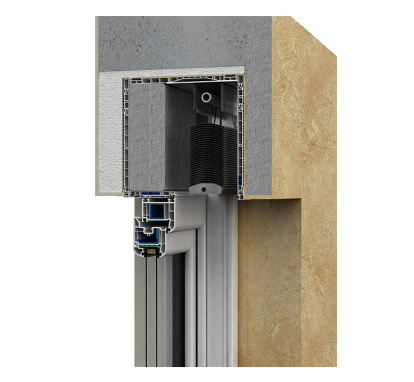

In this option, blind profiles are placed in a PVC box (dimensions: 245 x 255 mm). The system also uses sturdy 60 × 87 mm aluminium guides, mounted on the window frame.

Discover the advantages of the system:

  • The use of a top-mounted box allows for compact connection of the blind directly to the window, and then mounting of the whole set in the opening.
  • The box is available in different colours, so you can choose the one, that matches the style of the facade and other architectural elements of the building.
  • As the blind mechanism is accessible from the outside, the entire inner part is well insulated, which eliminates the risk of thermal bridges.
  • It is also possible to install a mosquito net in the blind, which increases the functionality of the product in the summer months.

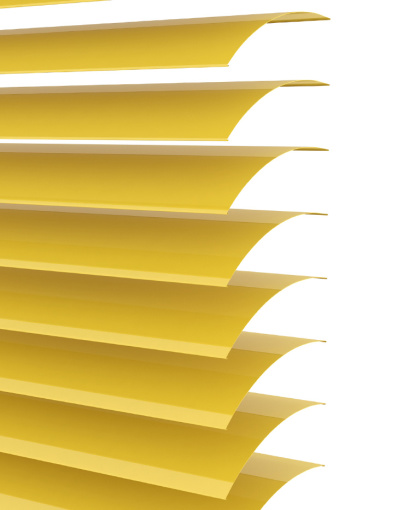

Shape

letter C

Width

80 mm

Translucency

incomplete lamella closure

Varnishing

anti-fading technology

Slats Operation

in the 180° range

Other

optical profile "lightness"

Colours

A diverse range of colour options allows giving products an individual style, emphasizing the investment's nature. Blinds slats are available in various colours:

22B - RAL 9016
01 - RAL 9006
37 - RAL 9007
03B - RAL 7038
09 – Brown RAL 8014
23B - RAL 7016
20B - RAL 9005
21 – Black & grey RAL 7021
75B - DB 703
31B - RAL 7035
73B - RAL 7048
16B - RAL 1015
74B - VSR 780

The colours presented are just a visualization and may be different from the actual colours.
