Drzwi tarasowe ST
Back to Patio Doors

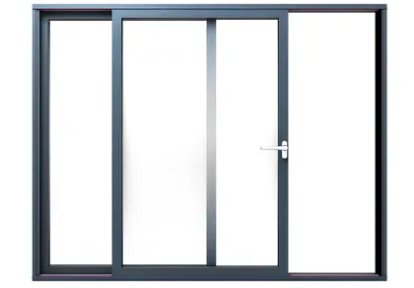

ST aluminium patio doors

The best solution for terraces and patios

Design possibilities

large design size solutions

Flush threshold

maximum comfort

Horizontal sliding

full opening of the sliding door

Narrow profiles

more natural lighting

Request a Quote

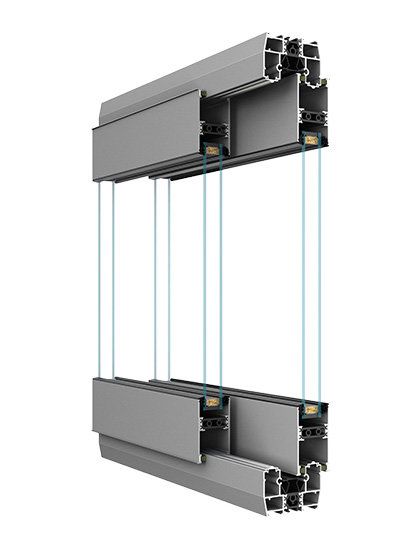

ST aluminium sliding patio doors

The construction feasibility of ST sliding doors allows for large glazing, while the frame sinks into the floor, eliminating the threshold.

This solution is ideal for rooms with no heating, like glazed patios, and with height restrictions. ST doors are a proven sliding door system at a very attractive price. The construction allows for low sliding elements, where there are limitations of construction height. In this patio door option, large opening areas are accomplished by constructing 2- and 3-track frames, using up to 6 door sashes.

Drzwi DA-51 ST
Generate PDF file
Profile name

DA-51

Uw*

1,4 W/m2K

Glazing package

4ESG/12Ar/4ESG/12Ar/4ESG

Max. sash width

2600 mm

Max. sash height

2800 mm

Full specification

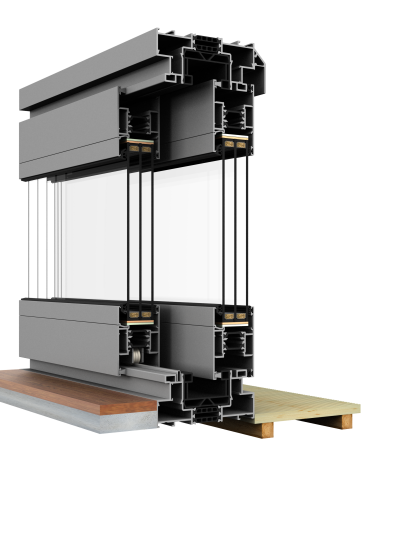

DA-51 ST

Thermal efficiency
Uw*
1,4 W/m2K
*
reference construction 2460 mm x 2180 mm
Profile
Profile name
DA-51
Installation depth
3-chamber profile, Sash: 51 mm | Frame: - double track frame: 118 [mm] - double track frame with threshold flush aligned as an option: 125 [mm]) - triple track frame: 184 [mm] - triple track frame with threshold flush aligned as an option: 192 [mm]) - monorail: 142 [mm]
Number of chambers
3
Thermal break
Thermal breaks 26 mm made of fiber glass reinforced by polyamide
Number of seals
2 perimeter seals
Glass
Glazing package
4ESG/12Ar/4ESG/12Ar/4ESG
Ug value
0,7 W/m2K
Package thickness
8 to 36 mm - sash | 20 to 60 mm fixed surfaces in monoral constructions
Sound insulation of available glazing
Rw: from 31 to 40dB
Fitting
Type
Track with inox rollers provides lifting capacity to 250 kg
Hinges
n/a
Anti-Theft protection
n/a
Micro-ventilation
n/a
Other
n/a
Handle
Colours
Standard colour: white, brown, silver | Optional colour: RAL palette
Handle model
Handle on long handle plate, made of aluminium
Sash size
Min. sash width
600 mm
Max. sash width
2600 mm
Min. sash height
520 mm
Max. sash height
2800 mm
Max. sash weight
250 kg
Max. sash area
---

DA-40 ST

Thermal efficiency
Uw*
1,7 W/m2K
*
reference construction 2460 mm x 2180 mm
Profile
Profile name
DA-40
Installation depth
Sash: 40 mm | Frame: 65 mm
Number of chambers
3
Thermal break
Thermal breaks 22 mm made of fiber glass reinforced by polyamide
Number of seals
Two brush seals
Glass
Glazing package
4/16/4
Ug value
1,0 W/m2K
Package thickness
24 to 32 mm
Sound insulation of available glazing
31 to 40 dB
Fitting
Type
A sliding window roll
Hinges
n/a
Anti-Theft protection
n/a
Micro-ventilation
n/a
Other
n/a
Handle
Colours
black
Handle model
Grip made of aluminium
Sash size
Min. sash width
500 mm
Max. sash width
2000 mm
Min. sash height
360 mm
Max. sash height
2550 mm
Max. sash weight
160 kg
Max. sash area
---

Colours of aluminium sliding patio doors

The full range of RAL colours is available in the colour chart

RAL 9016 White
Silver - RAL 9006
RAL 8019
RAL palette color

The colours presented are just a visualization and may be different from the actual colours.

Features

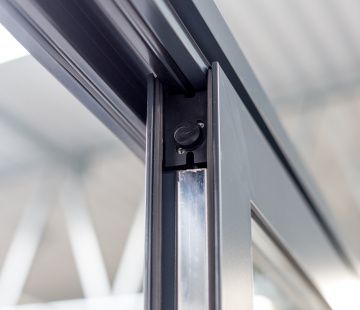

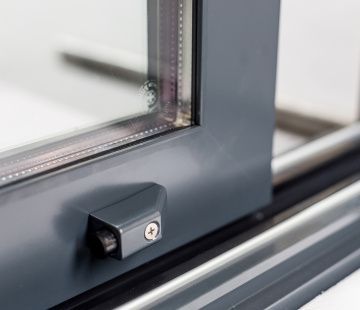

Handles

Handles

Details
Threshold

Threshold

Details

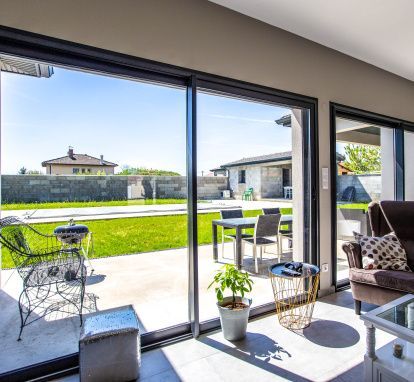

System aluminiowych drzwi przesuwnych ST

ST aluminium sliding door system

It offers an aesthetic and functional development of unheated rooms. Why is it worth considering?

  • Large design possibilities - large scale solution for elegant and trendy glazing
  • Horizontal sliding - allows the movable sash to be fully opened
  • Flush threshold alternative - available as an option, flush threshold alignment with the interior floor level eliminates an obstacle, providing maximum convenience of use
  • Narrow profile folds allowing for better interior lighting



DA-51 ST aluminium sliding patio doors are great for customers looking for doors to build patios and terraces, offering elegant large glazing with maximum interior illumination.

In this system, it is possible to use a monorail construction, which allows the panes to be directly embedded in the frame, without a sash profile. In the DA-51 ST system, it is possible to use monorail construction solutions, which allow the panes to be directly embedded in the frame, without using a sash profile. Also, narrow, 34 mm folds allow more natural light to enter the interior, while the possibility to align the threshold with the interior floor level, available as an option, eliminates obstruction in the circulation path, providing maximum convenience to the occupants.

The proven DA-40 ST aluminium sliding patio door system, available at very attractive prices, allows low sliding elements in rooms with no heating, glazed patios or terraces.

Sinking the frame in the floor eliminates the threshold, while the design options allow installation wherever there are structural height restrictions. Lightweight door operation allows for comfortable operation, despite a large size.

Check where to buy our products

Request a Quote
Get inspired by DAKO products

ST aluminium patio doors

Thermal efficiency
Uw*
1,2 W/m2K
*
---
