Top-mounted roller shutters in EPS box

A solution with increased thermal insulation properties

DK-RNT roller shutters are a solution that allows better care of the thermal insulation properties of the entire building, due to the use of a Styrofoam EPS box. The roller shutter box material is characterized by excellent thermal insulation and significantly reduces heat loss in the winter. This means more savings on heating bills.

The aesthetic solution that allows the box to be completely built into the insulation layer, making it an unnoticeable element of the building façade. It is also possible to equip the roller shutters with a mosquito net built directly into the roller shutter box using easy and quick "click" mounting.


Housing

under the façade

Inspection flap

outside

Installation

during construction/renovation

Control

automatic/manual

Integration with mosquito net

yes

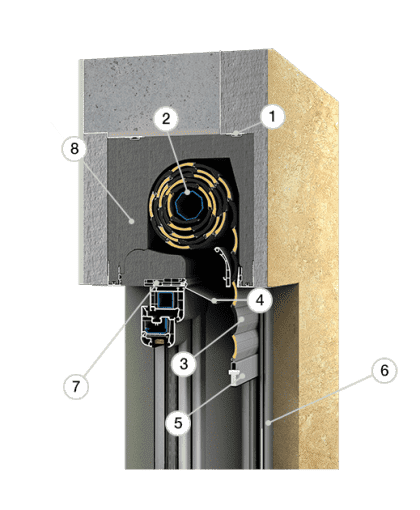

1 - Roller blind box | 2 - Winding pipe | 3 - Armour | 4 - Inspection flap | 5 - Bottom rail | 6 - Guide rail | 7 - Adaptive profile | 8 - Insulation


Roller shutters located from the inside of the building, so that on higher floors there is no need to use scaffolding

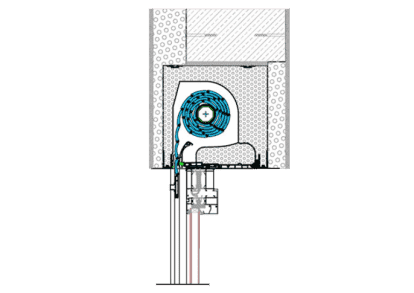

Access to the inspection flap from the outside of the building allows the roller shutters to be serviced without interfering with the interior of the room. The location of the inspection flap also has an advantageous effect on the box's insulation parameters. It also allows to use this solution regardless of the window frame profile width (e.g. in HST sliding patio doors)

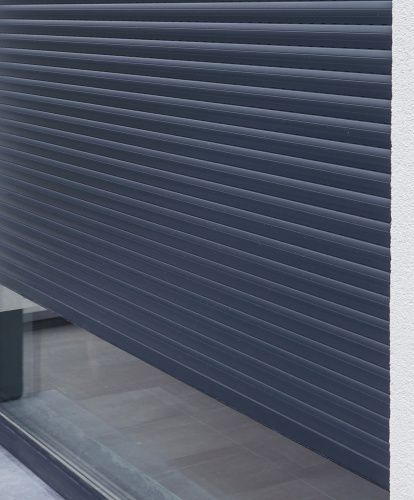

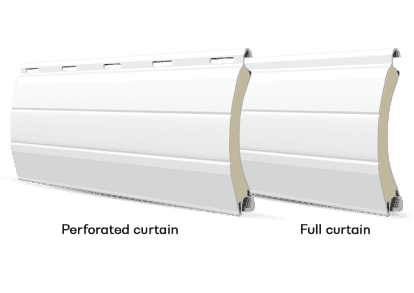

  • Exterior roller shutters armour is available in a perforated and full version
  • As standard, the shutters are made of armour in a perforated version, while the first six upper profiles are made in full version to limit the penetration of light as a result of inaccurate closing of the blind
  • DPA 39 armour – max. area 6 m2, max. width – 2900 mm
  • DPA 43 armour – max. area 8 m2, max. width – 3200 mm

Colours


01 – Silver

02 – White

03 – Grey

04 – Dark beige*

05 – Beige

08 – Dark brown

09 – Brown

15 – Creamy white

16 – Ivory

23 – Grey anthracite

31 – Light grey



* colours for DPA 39 armour only
The colour sample is illustrative and cannot be used as a colour reference.

Features

DAKO exterior roller shutters & Smart Home

DAKO's automatically controlled exterior shutters can be integrated into Smart Home management systems and controlled via the internet from anywhere on Earth!
