HST PVC patio doors

PVC lift and slide patio doors

Options available:

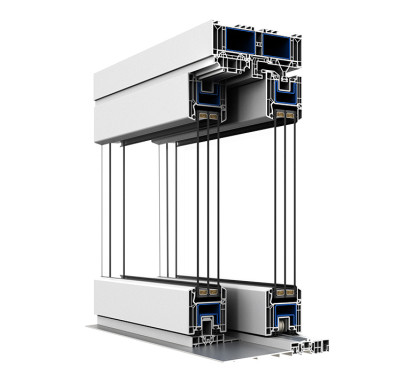

HST-Motion FlatStep NEW!

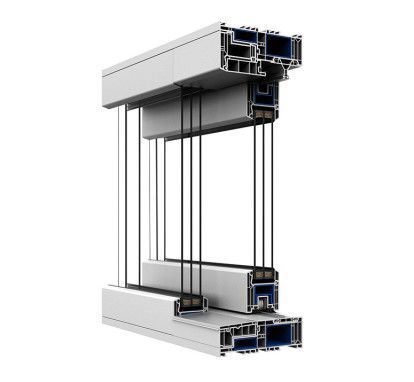

HST-Motion Max

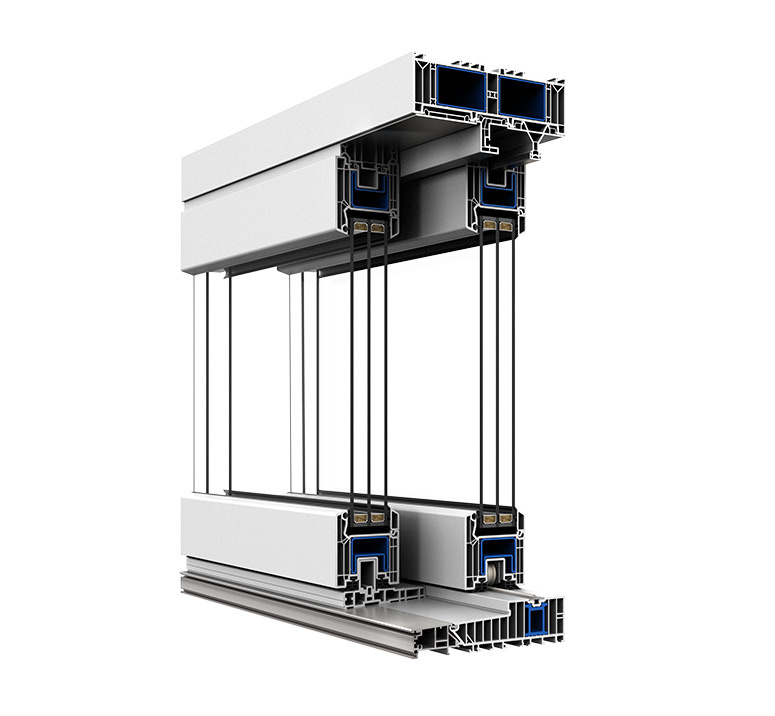

HST-Motion

They operate on the basis of an innovative lift-and-slide opening system, allowing for the implementation of large-sized glazing.Convenient opening and closing and the ability to flush the doorstep with the floor make it an extremely prestigious and elegant solution for those looking for lots of natural light. The door works based on an innovative lift-and-slide opening system, which gently lifts the sash moving on special rollers. This makes sliding the door effortless.

Even better patio doors!
HST-motion from DAKO

Perfect lighting
large glazings in narrow vinyl sash profiles provide a striking appearance and plenty of natural light
Smooth operation of the moving sash
using a small amount of force allows the sash to move freely and the door to be operated easily
Thermal comfort of the floor adjacent to the door
a warm PVC threshold with high thermal insulation additionally eliminates heat loss
Safety and aesthetics
the hook espagnolette is free of protruding pins on the frame, which ensures collision-free communication as well as an elegant appearance
Barrier-free passage
the possibility of using a levelling overlay up to a 0 mm threshold

Technical information - HST PVC patio doors

Uw* Glazing package
0,83 W/(m²k) 4/18/4/18/4

Threshold
62 mm made of vinyl

Installation depth
Sash: 82 mm; Frame: 194 mm

Max. door height
2,7 m for white color and 2,5 m for other colors

Max. door width Max. sash size
6,5 m 6,5 m²

V-perfect welding

* Glass 4/18/4/18/4 gas: argon, swisspacer ultimate warm edge spacer, construction size 2460 mm x 2180 mm

Uw* Glazing package
0,77 W/(m²k) 4/18/4/18/4

Threshold
62 mm made of vinyl

Installation depth
Sash: 82 mm; Frame: 194 mm

Max. door height
2,7 m for white color and 2,5 m for other colors

Max. door width Max. sash size
6 m 6,5 m²

V-perfect welding

* Glass 4/18/4/18/4 gas: argon, swisspacer ultimate warm edge spacer, construction size 2460 mm x 2180 mm

Uw* Glazing package
0,84 W/(m²k) 4/18/4/18/4

Threshold
24 mm aluminium with thermal break

Installation depth
Sash 82 mm | Frame 194 mm

Max. door height
2,66 m for whites and 2,46 m for other colours

Max. door width Max. sash size
6 m 6,5 m²

V-perfect welding

* Glazing 4/18/4/18/4 gas: argon, warm swisspacer SWS ultimate, construction dimension 2460 mm x 2180 mm

Colours

Basic colours

Golden oak 2178001

Nut 2178007

Winchester 49240

Swamp oak 2052089

Anthracite 701605

Dark grey silk 4367003

Woodec oak F4703001

Anthracite grey ulti –matt 02.20.71.000001 – 504700

Black mat 02.12.01.000004 – 809700

Special colours

Mahogany 2065021

Sheffield Oak F4563081

White 9152.05

Light oak 3118076

Brown 887505

Mountain pine 3069041

Oregon III 2115008

Creamy white 137905

Light grey 725105

Agate grey 703805

Smooth silver grey 715505083

Silver grey 715505

Basalt grey 701205

Smooth basalt grey 701205083

Quartz grey 703905

Navy blue 515005

Green 600505

Dark green 612505

Red-brown 308105

Ruby 300305

Platyna crown 1293001

Dark grey ALUX DB 703

Black 116700

Desert oak 0057004

Monument oak 0057006

The colours presented are just a visualization and may be different from the actual colours.

Features

Threshold

Threshold

Lock system

Lock system
