HST aluminium patio door

HST aluminium patio doors

The innovative lift and slide door on an aluminium profile offers maximum thermal insulation and an increased range of glazing options, also available in a modern corner option.

Comfortable and light operation of the door is ensured by a functional opening system, that gently lifts the sash moving on special rollers. This makes sliding the door effortless. The doorstep can also be flush with the floor from the inside, making it much easier to move between the interior of the house and the patio or garden. Aluminium profile allows the construction of exceptionally large glazing, which maximally illuminates the interior, giving it a spacious and premium character.

View in the catalogue
Generate PDF file
Profile name

DA-77

Uw*

1,1 W/m2K

Max. sash width

3300 mm

Max. sash height

3200 mm

Full specification

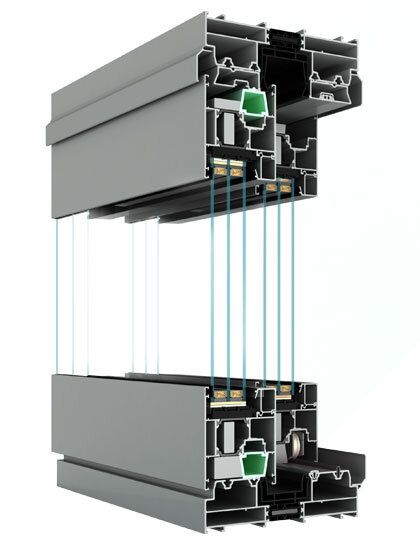

DA-77 HST

Thermal efficiency
Uw*
1,1 W/m2K
*
reference construction 2460 mm x 2180 mm
Profile
Profile name
DA-77
Installation depth
Sash: 77 mm | Frame: 174 mm
Number of chambers
3
Thermal break
Thermal breaks 35 mm made of fiber glass reinforced by polyamide
Number of seals
Two seals of two-component EPDM synthetic rubber
Glass
Glazing package
4x18x4x18x4
Ug value
0,5 W/m2K
Package thickness
from 14 to 58 mm
Sound insulation of available glazing
Rw: from 31 to 47dB
Fitting
Type
Lift -sliding fittings
Hinges
n/a
Anti-Theft protection
n/a
Micro-ventilation
yes
Other
n/a
Handle
Colours
Standard color: white, brown, silver | Optional color: stainless steel, old gold, colour of ironwork
Handle model
Made of aluminium
Maximum construction dimensions
Width
6500 mm
Height
3000 mm
Sash size
Min. sash width
900 mm
Max. sash width
3300 mm
Min. sash height
1900 mm
Max. sash height
3200 mm
Max. sash weight
300 kg
Max. sash area
---
Other
Other
OPTION: Automatic door - remote-controlled door opening and closing

DA-77 HST corner solution

Thermal efficiency
Uw*
1,1 W/m2K
*
reference construction 2460 mm x 2180 mm
Profile
Profile name
DA-77
Installation depth
Sash: 77 mm | Frame: 174 mm
Number of chambers
3
Thermal break
Thermal breaks 35 mm made of fiber glass reinforced by polyamide
Number of seals
Two seals of two-component EPDM synthetic rubber
Glass
Glazing package
4x18x4x18x4
Ug value
0,5 W/m2K
Package thickness
from 14 to 58 mm
Sound insulation of available glazing
Rw: from 31 to 47 dB
Fitting
Type
Lift -sliding fittings
Hinges
n/a
Anti-Theft protection
n/a
Micro-ventilation
yes
Other
n/a
Handle
Colours
---
Handle model
Made of aluminium
Maximum construction dimensions
Width
6500 mm
Height
3000 mm
Sash size
Min. sash width
900 mm
Max. sash width
3300 mm
Min. sash height
1900 mm
Max. sash height
3200 mm
Max. sash weight
300 kg
Max. sash area
---

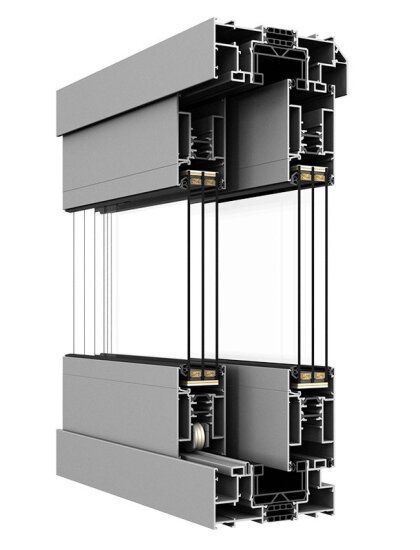

DA-51 HST

Thermal efficiency
Uw*
1,4 W/m2K
*
reference construction 2460 mm x 2180 mm
Profile
Profile name
DA-51
Installation depth
Sash: 51 mm | Frame: double track - 118 mm; double track with the optional flooding threshold - 125 m; three-track: 184 mm; three-track with the option of a threshold to be flooded - 192 mm; monorail - 142 mm
Number of chambers
3
Thermal break
26 mm glass-fibre reinforced polyamide thermal breaks
Number of seals
Two EPDM dual-component synthetic rubber seals
Glass
Glazing package
Triple glazing package: 4ESG/12Ar/4ESG/12Ar/4ESG TGI frames
Ug value
0,7 W/m2K
Package thickness
glazing thickness available: from 8 to 36 mm |permanent fields in monoral constructions from 20 mm to 60 mm
Sound insulation of available glazing
---
Fitting
Type
Lift – sliding fitting
Hinges
n/a
Anti-Theft protection
n/a
Micro-ventilation
yes
Other
n/a
Handle
Colours
---
Handle model
Made of aluminium
Maximum construction dimensions
Width
6500 mm
Height
2600 mm
Sash size
Min. sash width
710 mm
Max. sash width
2000 mm
Min. sash height
1750 mm
Max. sash height
2600 mm
Max. sash weight
200 kg
Max. sash area
---

Colours

The full range of RAL colours is available in the colour chart

Basic colours

RAL 9016 White
Silver - RAL 9006
RAL 8019
RAL palette color

Wood-like varnishes

Golden oak ADEC D101
Nut ADEC O102
Nut Vein ADEC O205
Mahogany ADEC M103
Mahogany Sapeli ADEC M204
Pine ADEC S106
Cherry ADEC W109
Wenge ADEC W205
Sweet cherry ADEC C110
Sweet cherry ADEC C212
Rustic oak ADEC D210
Swap oak ADEC D502
Heban ADEC M102
Pine ADEC S110
Sweet cherry dark ADEC C106
Chesnut ADEC K101

Structural colours

RAL 8014
Mars 2525 Sable
Classic 591T Kalahari
Classic 591T Kalahari Tiefmat
RAL 9016
RAL 7004
RAL 7012
RAL 7016
RAL 7021
RAL 7024
RAL 7036
RAL 7037
RAL 7039
RAL 8019
RAL 9004
RAL 9010
RAL 2100
RAL 2900

The colours presented are just a visualization and may be different from the actual colours.

Features

Threshold

Threshold

Details
HST handles

HST handles

Details

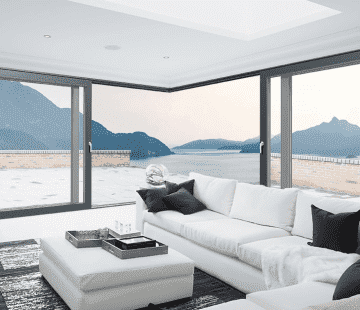

HST DA-77 patio doors in the corner variant are a perfect solution for those looking for large and impressive glazing.

They operate on the basis of an innovative lift-and-slide opening system, while their additional asset is a large-size glazing. An extremely practical solution is also the use of a movable post, that allows you to open the entire corner, thus enabling adequate air circulation. Corner patio doors made of aluminium fit perfectly into modern trends of transparent architecture. They will surely be appreciated by people, who value functional and quality solutions.

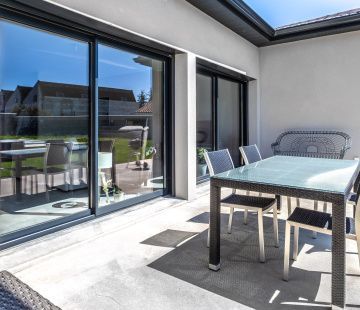

Drzwi tarasowe DA-77 HST

HST DA-51 system, in turn, allows you to construct structures that optimally light up the interior of the building, giving it a spacious and premium character. In this system, there is a possibility to use monorail construction, which allows the panes to be embedded directly in the frame, without a sash profile. In addition, the narrow 34 mm enclosures allow more natural light into the interior.

Drzwi HST z ALUMINIUM

Check where to buy our products

Request a Quote
Get inspired by DAKO products

HST aluminium patio door

Glass
Glazing package
Potrójny pakiet szybowy 4x18x4x18x4
Ug value
0,5 W/m2K
Package thickness
Dostępna grubość oszklenia: od 14 do 58 mm
Sound insulation of available glazing
---
Fitting
Type
Okucie podnoszono-przesuwne
Hinges
---
Anti-Theft protection
---
Micro-ventilation
---
Other
---
Handle
Colours
---
Handle model
Wykonana z aluminium
Maximum construction dimensions
Width
6500 mm
Height
2 700 mm biały | 2 500 mm pozostałe kolory
Sash size
Min. sash width
900 mm
Max. sash width
3300 mm
Min. sash height
1900 mm
Max. sash height
3200 mm
Max. sash weight
300 kg
Max. sash area
---
Other
Other
OPCJA: Drzwi automatyczne - otwieranie i zamykanie za pomocą pilota.
