Back to Doors

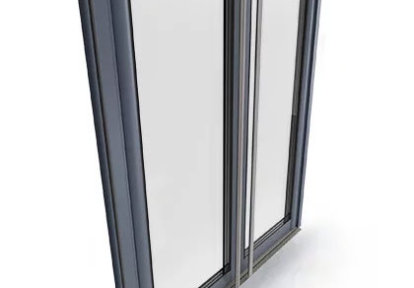

Profiled Swing Doors

The DA-100 GFT system will prove itself wherever high thermal insulation and mechanical strength of the structure are a priority.

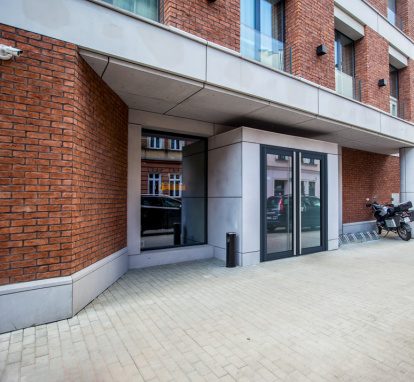

The doors are characterized by robustness, exceptional aesthetics and convenience of use. We particularly recommend them for the construction of entrances on the first floor of the building, in public facilities such as restaurants, stores or offices.

This model is equipped with a convenient low threshold, a door closer hidden in the frame, and the so-called "safe lock" on the hinge side. The DA-100 GFT door can perform a swing function or open only in one direction, depending on the user's requirements and preferences.

Profiled Swing Doors DA-100 GFT

View in the catalogue
Generate PDF file
Uw*

from 1,1 W/(m2K)*

Glazing package

ESG4/18/ESG4/18/ESG4

Installation depth

67 mm (lock profile), 69 mm (horizontal profile), 100 mm (hinge profile)

Air permeability

to class 3 (600Pa), EN 12207

Water tightness

to class 3A (100Pa), EN 12208

Wind load resistance

to class C2/B4/A5, EN 12210

Full specification

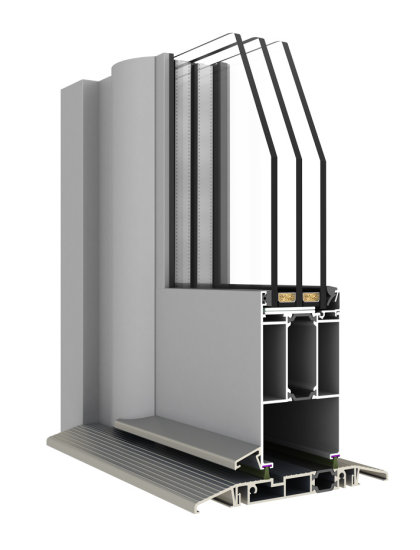

DA-100 GFT

Thermal efficiency
Uw*
from 1,1 W/(m2K)*
*
Thermal transmittance of the reference door for DA-100 GFT door size 1230×2180 mm with 2-chamber glass Ug 0.5 W/(m2K) and warm distance frame
Profile
Profile name
DA-100 GFT
Installation depth
67 mm (lock profile), 69 mm (horizontal profile), 100 mm (hinge profile)
Number of chambers
3
Thermal break
34mm glass fibre reinforced polyamide thermal breaks glass fibre reinforced polyamide
Number of seals
2 brush seals
Sash infill | fire doors
External glazing
---
Opaque area
---
Available infill or glazing thickness:
from 8 to 48 mm
Sound insulation of available glazing
---
Internal glazing
---
Glass
Glazing package
ESG4/18/ESG4/18/ESG4
Ug value
0,5 W/m2K
Package thickness
48 mm
Sound insulation of available glazing
Rw = 38 dB
Fitting
Type
---
Hinges
Door closer Adams Rite
Anti-Theft protection
---
Micro-ventilation
---
Other
---
Handle
Colours
---
Handle model
Grip P10
Insert
Insert type
Building insert
Lock
Lock type
Adams Rite hook lock, 3-pct lock. FUHR 855GL Type 3, Fuhr passive sash central locking, Dorma 9800 Series panic hardware components
Maximum construction dimensions
Width
2500 mm
Height
2500 mm
Sash size
Min. sash width
1110 mm
Max. sash width
1400 mm
Min. sash height
2070 mm
Max. sash height
2500 mm
Max. sash weight
80 kg
Max. sash area
---
Technical parameters
Water tightness
to class 3A (100Pa), EN 12208
Air permeability
to class 3 (600Pa), EN 12207
Wind load resistance
to class C2/B4/A5, EN 12210

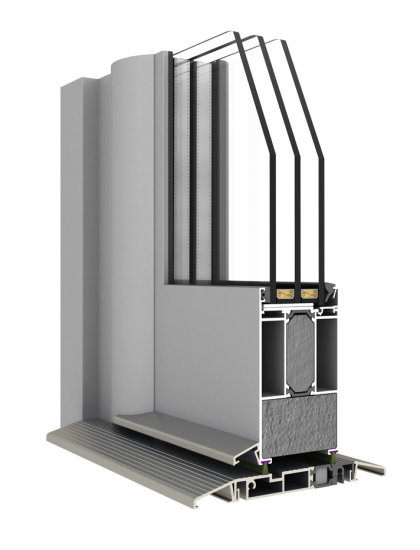

DA-100 GFT SI

Thermal efficiency
Uw*
from 0,96 W/(m2K)*
*
Thermal transmittance of the reference door for DA-100 GFT SI door size 1230×2180 mm with 2-chamber glass Ug 0.5 W/(m2K) and warm distance frame
Profile
Profile name
DA-100 GFT
Installation depth
67 mm (lock profile), 69 mm (horizontal profile), 100 mm (hinge profile)
Number of chambers
3
Thermal break
34 mm glass fibre reinforced polyamide thermal breaks glass fibre reinforced polyamide
Number of seals
2 brush seals
Sash infill | fire doors
External glazing
---
Opaque area
---
Available infill or glazing thickness:
from 8 to 48 mm
Sound insulation of available glazing
---
Internal glazing
---
Glass
Glazing package
ESG4/18/ESG4/18/ESG4
Ug value
0,5 W/m2K
Package thickness
48 mm
Sound insulation of available glazing
Rw = 38 dB
Fitting
Type
---
Hinges
Door closer Adams Rite
Anti-Theft protection
---
Micro-ventilation
---
Other
---
Handle
Colours
---
Handle model
Handle P10
Insert
Insert type
Building insert
Lock
Lock type
Adams Rite hook lock, 3-pct lock. FUHR 855GL Type 3, Fuhr passive sash central locking, Dorma 9800 Series panic hardware components
Maximum construction dimensions
Width
2500 mm
Height
2500 mm
Sash size
Min. sash width
1110 mm
Max. sash width
1400 mm
Min. sash height
2070 mm
Max. sash height
2500 mm
Max. sash weight
80 kg
Max. sash area
---
Technical parameters
Water tightness
to class 3A (100Pa), EN 12208
Air permeability
to class 3 (600Pa), EN 12207
Wind load resistance
to class C2/B4/A5, EN 12210
Determination of sash opening directions.pdf.pdf
86.72 kB
Download

Colors of aluminum doors

The full range of RAL colours is available in the olour chart.

Basic colours

RAL 9016 White
Silver - RAL 9006
RAL 8019
RAL palette color

The colours presented are just a visualization and may be different from the actual colours.
