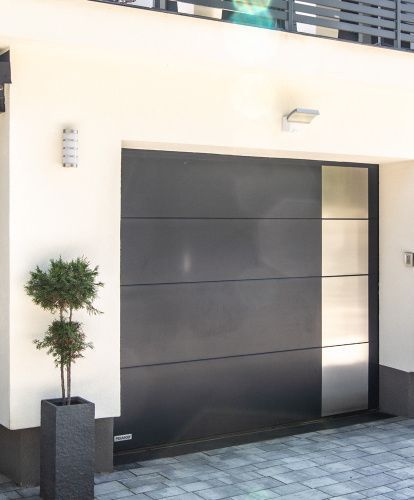

Segmentowe bramy garażowe z panelem grubości 40 mm

Sectional garage doors with a 40 mm panel

A proven solution with increased aesthetics

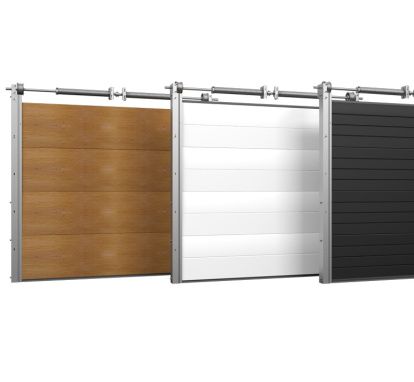

In sectional doors with a 40 mm panel, we can choose among three available panel designs – we offer smooth panels or one of the two ribbing variants (high ribbing or ribbed).

The panels can be painted in almost any colour and/or veneered – a wide range of colours also allows you to create non-standard connections and patterns. As for sectional doors, it is possible to use additional decorations on their surface, the so-called "decors" – e.g. stuck on the outside of the panel, made of damage-resistant stainless steel or the use of glass windows – to decorate and illuminate the garage interior.

Types and construction of 40 mm standard garage door panels


U factor

panel 0.54 W/m2K / door 1.5 W/m2K*

Panel thickness

40 mm

Filling

CFC-free polyurethane foam

Outer shell

0.48 mm galvanised steel sheet

Corrosion protection

coating on the sheet surface

Panel height

500, 553 ** or 610 mm

*sectional door with dimensions of 3000 mm x 2440 mm

**applies to doors from the HarmonyLine range

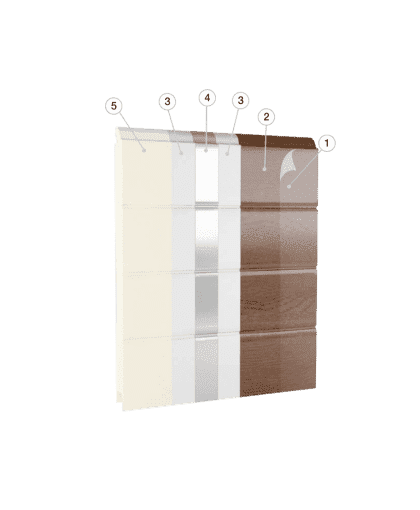

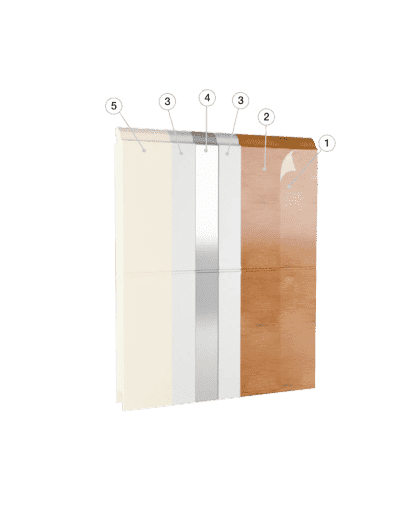

1 - Protective foil  |  2 - Organic coating  |  3 - Galfan  |  4 - Steel  |  5 - Polyurethane foam

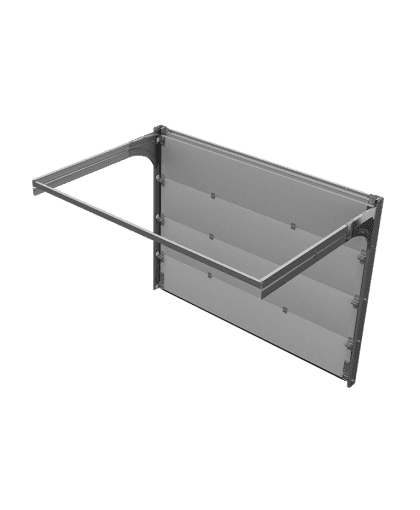

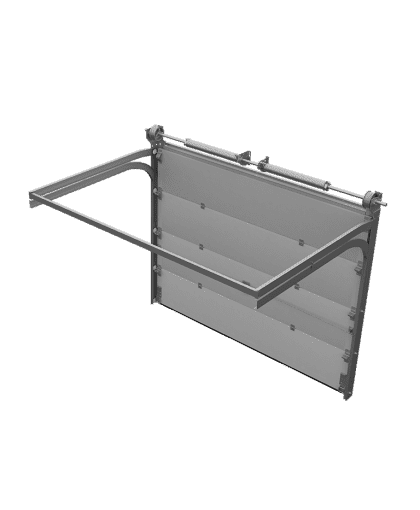

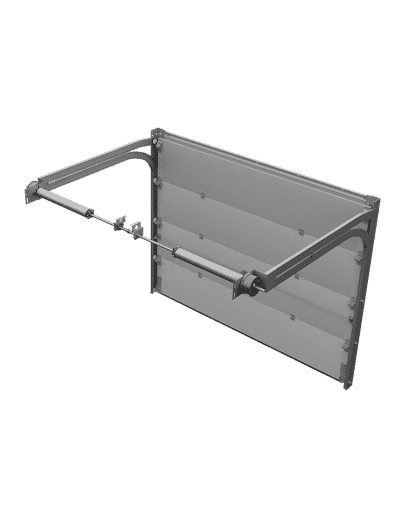

Types of door track


Doors with a panel

40 mm

Lintel height

min. 350 mm

Torsion springs

mounted at the front, at the lintel

Guide rails

single horizontal

Safety is fundamental – give yourself peace of mind with the basic door security package by DAKO

01

Safe panel – special shape of the panels prevents the fingers from trapping between the panels when closing the door

02

Safety features in the event of a failure – prevent lowering of the door leaf in the event of a cable or spring break (standard for doors over 9 m2, not applicable for N tracks)

03

Safe drive – automation is stopped by overload switch when detecting an obstacle, which is standard equipment

Door colours

Standard

Golden oak 2178001
Nut 2178007
Anthracite Wrinkle
RAL 9016 White
RAL 8014 Brown
Silver - RAL 9006
RAL 7016 Anthracite grey
RAL 9005 Black

Veneers – 1st group

Mahogany 2065021
Winchester 49240
Swamp oak 2052089
Anthracite 701605
Sheffield Oak F4563081
White 9152.05
Brown 887505
Creamy white 137905
Silver grey 715505
Basalt grey 701205
Dark grey silk 4367003
Quartz grey 703905

Veneers – 2nd group

Light oak 3118076
Mountain pine 3069041
Oregon III 2115008
Light grey 725105
Agate grey 703805
Smooth silver grey 715505083
Smooth basalt grey 701205083
Navy blue 515005
Green 600505
Dark green 612505
Ruby 300305
Platyna crown 1293001
Dark grey ALUX DB 703
Black 116700
Desert oak 0057004
Monument oak 0057006
Woodec oak F4703001
Anthracite grey ulti –matt 02.20.71.000001 – 504700
Black mat 02.12.01.000004 – 809700

Other colours

RAL palette color

The colours presented are just a visualization and may be different from the actual colours.

Equipment

DAKO & Smart Home garage doors

Automatically controlled DAKO garage doors can be included in Smart Home Management Systems and controlled via the Internet from anywhere in the world!
