Okna DDF-92 AL
Back to Wood-Aluminium Windows

Wooden-aluminium windows: DDF-92 AL range

The most thermally-efficient joinery solution with aluminium cladding

Modern window finish

a simple form that offers an impression of lightness

Excellent performance

thermal insulation and soundproof

The ultimate comfort

thanks to the use of the highest quality materials

The widest profile

92 mm width

Request a Quote

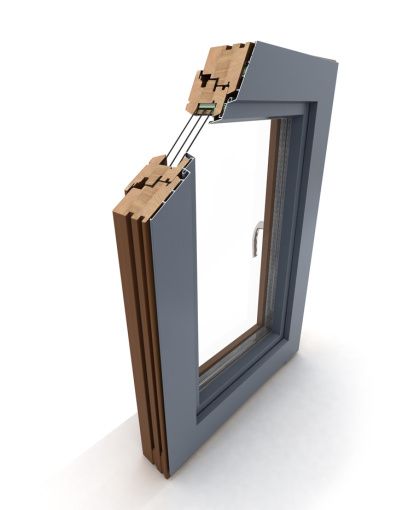

DAKO windows from the DDF-92 AL range

The use of external aluminium cladding for wooden windows with a thickness of 92 mm resulted in an energy-efficient product of extraordinary durability, allowing for exceptional building aesthetics.

The beauty of wood enriches the interiors by offering premium and elegant character. The aluminium cladding allows almost any finishing of the windows, while protecting them against weather conditions.

Okna DDF-92 AL
Generate PDF file
Uw*

0.86 W/m2K

Installation depth

106 mm

Hinges

Surface-mounted

Handle model

1006

Burglar-proof latches

1 burglar-proof latch

Glazing package

4/16/4/16/4

Full specification

Colours

The full range of RAL colours is available in the wzorniku.

Transparent colours: pine

Clear
White azure
Light grey azure
Dark grey azure
Pine classic – K 077
Light oak classic – K 006
Old pine classic – K 073
Chocolate brown – PL 1086
Teak classic – K 085
Mahogany classic – K 045
Palisander classic – K 048
Nut classic – K 010

Transparent colours: meranti

Clear
White azure
Light grey azure
Dark grey azure
Pine classic – K 077
Light oak classic – K 006
Old pine classic – K 073
Chocolate brown – PL 1086
Teak classic – K 085
Mahogany classic – K 045
Palisander classic – K 048
Nut classic – K 010

Opaque colours: RAL palette

RAL palette color

The colours presented are just a visualization and may be different from the actual colours.

Features

Handles

Handles

Details
Glass

Glass

Details
Muntins and strips

Muntins and strips

Details
Fittings

Fittings

Details
Opening sensors

Opening sensors

Details

DAKO windows from the DDF range with aluminium cladding

  • Window finishing in a modern, simple form, in line with current trends
  • Excellent thermal insulation and soundproof parameters in accordance with construction standards
  • The ultimate comfort

Check where to buy our products

Request a Quote
Get inspired by DAKO products

DDF-92 AL

Thermal efficiency
Uw*
0,86 W/m2K
*
reference window 1230 x 1480 mm, basic glass for a given series
Profile
Profile name
DDF-92
Installation depth
106 mm
Number of chambers
n/a
Thermal break
n/a
Number of seals
3
Glass
Glazing package
4/16/4/16/4
Ug value
0,5 W/m2K
Package thickness
44 mm
Sound insulation of available glazing
---
Fitting
Type
---
Hinges
surface-mounted
Anti-Theft protection
1 anti-theft latch for Tilt and Turn
Micro-ventilation
yes
Other
---
Handle
Colours
---
Handle model
1006
Dimensions
Maximum window width – single sash
1500 mm
Maximum window height – single sash
2550 mm
Maximum window width – double sash with a movable post
2080 mm
Maximum window height – double sash with a movable post
2550 mm
Maximum sash area
3 m2
Maximum size of fixed glazing (when using a special glass, maximum area of 7 m2 and weight of 250 kg)
3500 x 2900 mm or 2900 x 3500 mm
