Okna DDF-68 AL
Back to Wood-Aluminium Windows

Wood-aluminium windows: DDF-68 AL range

An economical alternative of wood windows with aluminium cladding

The beauty of wood

enriched with aluminium cladding

Premium standard

accessories

Optimal parameters

thermal insulation

Request a Quote

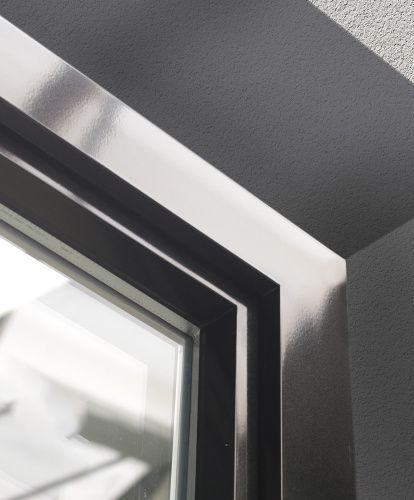

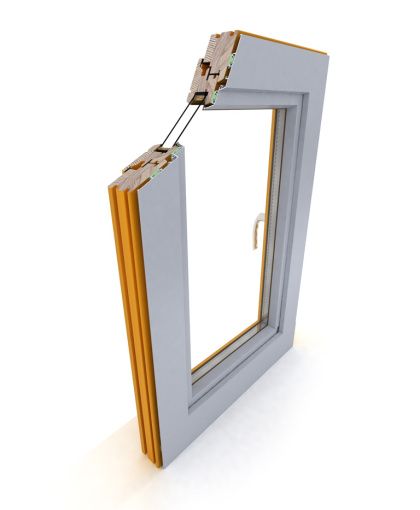

DAKO DDF-68 AL window range

The extraordinary durability of the DDF-AL range with a profile thickness of 68 mm is offered thanks to external aluminium cladding, which also helps to achieve a very modern look.

The beauty of wood enriches the interiors by offering premium and elegant character. The aluminium cladding allows almost any finishing of the windows, while protecting them against weather conditions.

DDF-68 AL
Generate PDF file
Uw*

1.2 W/m2K

Installation depth

82 mm

Hinges

Surface-mounted

Handle model

1006

Burglar-proof latches

1 burglar-proof latch

Glazing package

4/16/4

Full specification

Colours

Pełna oferta kolorów palety RAL dostępna jest we wzorniku.

Opaque colours: standard
biały RAL 9016
Brąz RAL 8077
Transparent colours: pine, larch, spruce
Pine classic – K 077
Light oak classic – K 006
Old pine classic – K 073
Chocolate brown – PL 1086
Teak classic – K 085
Mahogany classic – K 045
Palisander classic – K 048
Nut classic – K 010
Transparent colours: meranti
Pine classic – K 077
Light oak classic – K 006
Old pine classic – K 073
Chocolate brown – PL 1086
Teak classic – K 085
Mahogany classic – K 045
Palisander classic – K 048
Nut classic – K 010
Opaque colours: RAL palette
RAL palette color

The colours presented are just a visualization and may be different from the actual colours.

Features

Handles
Handles
Details
Glass
Glass
Details
Muntins and strips
Muntins and strips
Details
Fittings
Fittings
Details
Opening sensors
Opening sensors
Details

DAKO DDF window range with aluminium cladding

  • Window finishing in a modern, simple form, in line with current trends
  • Excellent thermal insulation and soundproof parameters in accordance with construction standards
  • The ultimate comfort

Check where to buy our products

Request a Quote
Get inspired by DAKO products

DDF-68 AL

Thermal efficiency
Uw*
1,2 W/m2K
*
reference window 1230 x 1480 mm, basic glass for a given series
Profile
Profile name
DDF-68
Installation depth
82 mm
Number of chambers
n/a
Thermal break
n/a
Number of seals
3
Glass
Glazing package
4/16/4
Ug value
1,0 W/m2K
Package thickness
24 mm
Sound insulation of available glazing
---
Fitting
Type
---
Hinges
surface-mounted
Anti-Theft protection
1 anti-theft latch for Tilt and Turn
Micro-ventilation
yes
Other
---
Handle
Colours
---
Handle model
1006
Dimensions
Maximum window width – single sash
1500 mm
Maximum window height – single sash
2600 mm
Maximum window width – double sash with a movable post
1800 mm
Maximum window height – double sash with a movable post
2600 mm
Maximum sash area
3 m2
Maximum size of fixed glazing (when using a special glass, maximum area of 7 m2 and weight of 250 kg)
3500 x 2900 mm or 2900 x 3500 mm
