External roller shutter for lintel boxes DK-RZT

Self-supporting solution to traditional lintel boxes

Aesthetics

Roller shutter elements integrated into the building wall

Service access

Simple service access from the outside

Easy installation

Possibility to order shutters mounted to windows

Compatibility

Modular construction allows the use of a variety of controls

Request a Quote

Thanks to the installation of guides directly to the window frame, the installation of external roller shutter to DK-RZT lintel boxes is fast and convenient.

Simple service access from the outside of the building facilitates maintenance, and the modular construction allows for a variety of control options, both manual and automatic. This is an aesthetically pleasing and practical solution that perfectly meets the requirements of modern buildings.

View in the catalogue

Housing

in a lintel box

Service access

from the outside

Installation

to the window frame

Service access

from the outside

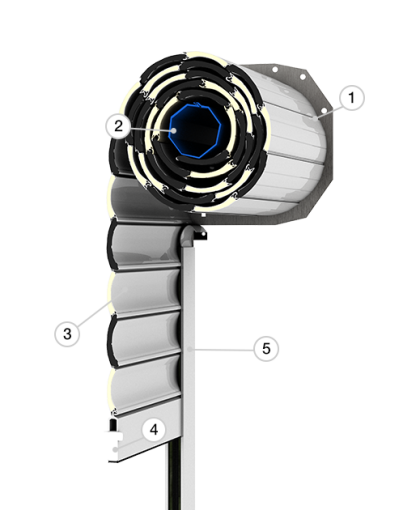

1 - Side plate | 2 - Driving tube | 3 - Armor | 4 - Bottom slat | 5 -Guide

Exterior roller shutters armour is available in the perforated and full version
As standard, the shutters are made of armour in perforated version, and the first six upper profiles are made in full version to limit the penetration of light as a result of inaccurate closing of the blind

DPA 39 armour – max. area 6 m2, max. width – 2900 mm
DPA 43 armour – max. area 8 m2, max. width – 3200 mm

Colours

01 – Silver

02 – White

03 – Grey

04 – Dark beige*

05 – Beige

08 – Dark brown

09 – Brown

15 – Creamy white

16 – Ivory

23 – Grey anthracite

31 – Light grey

* colours for DPA 39 armour only
The colour sample is illustrative and cannot be used as a colour reference.

06 – Dark wood

07 – Light wood*

30 – Golden oak

26 – Mahogany

28 – Walnut

36 – Marsh oak

49 – Woodec oak*

52 – Winchester

79 – Sheffield oak*

* colours for DPA 39 armour only
The colour sample is illustrative and cannot be used as a colour reference.

11 – Yellow*

12 – Red*

13 – Green*

17 – Fir green*

18 – Steel blue*

19 – Burgundy*

20 – Black

33 – Basalt grey

34 – Quartz grey

37 – Grey aluminium

43 – Grey anthracite pearl matt*

22 – Ultra white

35 – Concrete grey

40 – White pearl matt*

* colours for DPA 39 armour only
The colour sample is illustrative and cannot be used as a colour reference.

The veneer palette, known as "other veneer", is available in the Other veneer: colour selection tab

* RAL colours are available with the exception of pearl, metallic and fluorescent colours.

Colors of aluminum guides

02- White

03 - Agate grey

05 - Beige

08 - Dark brown

09 - Brown

23 - Anthracite grey

Other veneer

RAL palette color

Bottom slat colours

01- Silver

02- White

03 - Agate grey

05 - Beige

08 - Dark brown

09 - Brown

23 - Anthracite grey

30R - Golden oak

26R - Mahogany

28R - Nut

36R - Swamp oak

52R - Winchester

Other veneer

RAL palette color

The colours presented are just a visualization and may be different from the actual colours.

Selection of veneer colours available for selected roller shutter elements, according to their description. COLOURS NOT AVAILABLE FOR ROLLER SHUTTERS ARMOUR

Winchester 49240

Swamp oak 2052089

Anthracite 701605

Sheffield Oak F4563081

White 9152.05

Light oak 3118076

Brown 887505

Mountain pine 3069041

Oregon III 2115008

Creamy white 137905

Light grey 725105

Agate grey 703805

Smooth silver grey 715505083

Silver grey 715505

Basalt grey 701205

Smooth basalt grey 701205083

Dark grey silk 4367003

Quartz grey 703905

Navy blue 515005

Green 600505

Dark green 612505

Red-brown 308105

Ruby 300305

Platyna crown 1293001

Dark grey ALUX DB 703

Black 116700

Desert oak 0057004

Monument oak 0057006

Woodec oak F4703001

Anthracite grey ulti –matt 02.20.71.000001 – 504700

The colours presented are just a visualization and may be different from the actual colours.

Features

DAKO exterior roller shutters & Smart Home

DAKO's automatically controlled exterior shutters can be integrated into Smart Home management systems and controlled via the internet from anywhere on Earth!
