DPQ-82 thermoSecure AL
Back to PVC-Aluminium Windows

PVC-aluminium windows: DPQ-82 thermoSecure AL range

Comprehensive package of benefits. No compromises.

Maximum energy efficiency

the most thermally-efficient window range with SWISSPACER ultimate space bar

10% more natural light

and thermal savings thanks to the use of special glass

Unparalleled security

additional burglar-proof protection

Safety Door Handle

innovative Secuforte model

Request a Quote

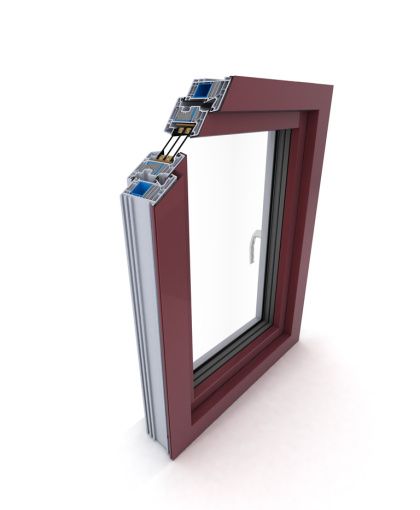

Okna z serii DPQ-82 thermoSecure AL
Generate PDF file
Uw*

0.75 W/m2K

Installation depth

87 mm

Hinges

Surface-mounted

Handle model

Secuforte Hamburg

Burglar-proof latches

2 burglar-proof latches

Default glazing package

4Eclaz/18/4/18/4Eclaz

V-perfect weld

on the inner veneer

Full specification



Maximum energy efficiency, unique safety

The flagship DAKO window range, constructed using unique thermal insulation and burglar-proof protection. The excellent parameters of DPQ-82 thermoSecure windows are confirmed by the results of laboratory tests.

Colours

Basic colours

Golden oak 2178001
Nut 2178007
Winchester 49240
Swamp oak 2052089
Anthracite 701605
Dark grey silk 4367003
Woodec oak F4703001
Anthracite grey ulti –matt 02.20.71.000001 – 504700
Black mat 02.12.01.000004 – 809700

Special colours

Mahogany 2065021
Sheffield Oak F4563081
White 9152.05
Light oak 3118076
Brown 887505
Mountain pine 3069041
Oregon III 2115008
Creamy white 137905
Light grey 725105
Agate grey 703805
Smooth silver grey 715505083
Silver grey 715505
Basalt grey 701205
Smooth basalt grey 701205083
Quartz grey 703905
Navy blue 515005
Green 600505
Dark green 612505
Red-brown 308105
Ruby 300305
Platyna crown 1293001
Dark grey ALUX DB 703
Black 116700
Desert oak 0057004
Monument oak 0057006

The colours presented are just a visualization and may be different from the actual colours.

Features

Handles

Handles

Details
Glass

Glass

Details
Muntins and strips

Muntins and strips

Details
Fittings

Fittings

Details
Opening sensors

Opening sensors

Details

Check where to buy our products

Request a Quote
Get inspired by DAKO products

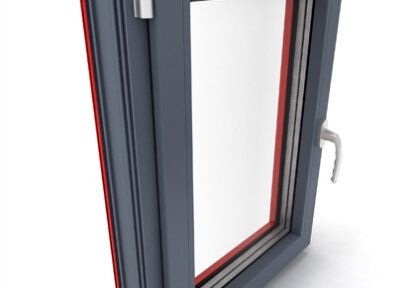

Okna DPQ-82 thermoSecure AL

DPQ-82 thermoSecure AL

Thermal efficiency
Uw*
0,75 W/m2K
*
reference window 1230 x 1480 mm
Profile
Profile name
DPQ-82 thermoSecure AL
Installation depth
87 mm
Number of chambers
7
Thermal break
yes
Number of seals
3
Glass
Glazing package
4Eclaz/18/4/18/4Eclaz
Ug value
0,5 W/m2K
Package thickness
48 mm
Sound insulation of available glazing
---
Fitting
Type
---
Hinges
surface-mounted
Anti-Theft protection
2 anti-theft latches
Micro-ventilation
yes
Other
---
Handle
Colours
---
Handle model
Secuforte Hamburg
Dimensions
Maximum window width – single sash
1500 mm
Maximum window height – single sash
2575 mm
Maximum window width – double sash with a movable post
2085 mm
Maximum window height – double sash with a movable post
2480 mm
Maximum sash area
2,25 m2
Maximum size of fixed glazing (when using a special glass, maximum area of 7 m2 and weight of 250 kg)
3500 x 2900 mm or 2900 x 3500 mm
