Brama garażowa Thermo  60 mm

Sectional garage doors with a 60 mm panel

Insulated doors – for the demanding

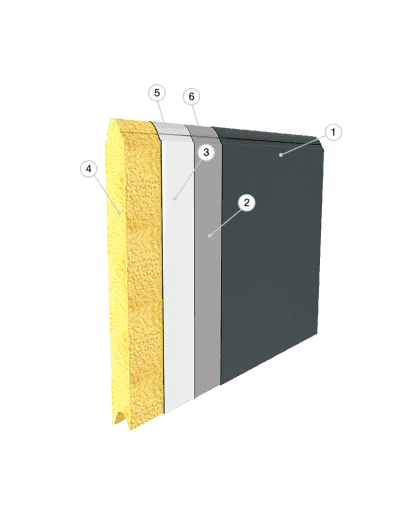

Construction of a smooth DK-GP Thermo panel



Construction of the DK-GP Thermo panel

U-factor

panel 0.34 W/m2K / door 1.0 W/m2K*

Panel thickness

60 mm

Filling

CFC-free polyurethane foam

Outer shell

galvanised steel sheet

Protection against corrosion

coating on the sheet surface

Panel height

500 or 610 m

*sectional door 3000 mm x 2440 mm

1 - Shell made of polyester  |  2 - Primer / podkład  |  3 - Galvanised steel Z225  |  4 - Polyurethane foam  |  5 - Galvanised steel Z100  |   6 - Primer

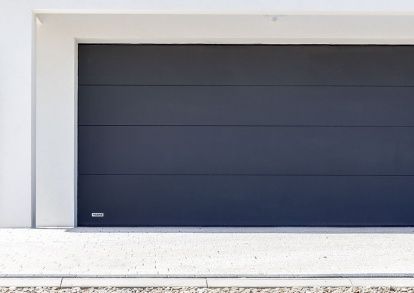

Door panel with a smooth finish

Aesthetic, insulated door panel with a smooth finish and no ribbing allows for a modern appearance of the door and its matching to the individual character of the building

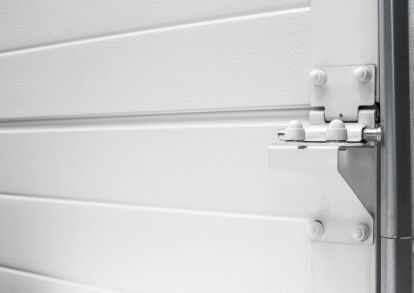

Uniform door appearance

The panel fittings and hinges are painted white (RAL9016) to match the appearance of the panels and to guarantee the aesthetic appearance of the door inside the garage too.

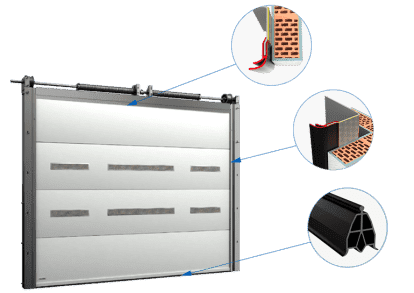

Elimination of heat loss

The tightness of the door is guaranteed by a properly matched set of seals. The sealing around the entire perimeter of the door is guaranteed by: upper seal, thermal side seals, sealing between panels and a bottom seal adapted to the panel structure.

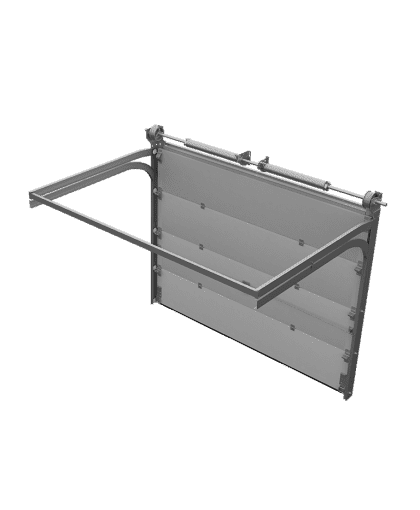

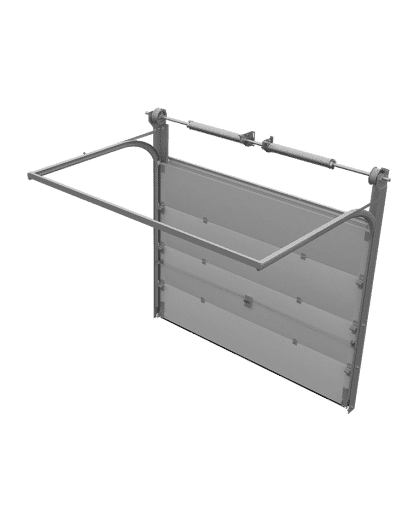

Door track types



Door with panel

60 mm

Lintel height

min. 370 mm

Torsion springs

mounted at the front, at the lintel

Guide rails

single horizontal

Safety is fundamental – give yourself peace of mind with the basic door security package by DAKO

01

Safe panel – special shape of the panels protects your fingers from trapping between the panels when closing the door

02

Safety features in the event of a failure – prevents lowering of the door leaf in the event of a cable or spring break

03

Safe drive – automation is stopped by overload switch when detecting an obstacle, which is standard equipment

Door colours

Standard
RAL 9016 White
RAL palette color
Veneers – 1st group
Golden oak 2178001
Nut 2178007
Mahogany 2065021
Winchester 49240
Swamp oak 2052089
Anthracite 701605
Sheffield Oak F4563081
White 9152.05
Brown 887505
Creamy white 137905
Silver grey 715505
Basalt grey 701205
Dark grey silk 4367003
Quartz grey 703905
Veneers – 2nd group
Light oak 3118076
Mountain pine 3069041
Oregon III 2115008
Light grey 725105
Agate grey 703805
Smooth silver grey 715505083
Smooth basalt grey 701205083
Navy blue 515005
Green 600505
Dark green 612505
Ruby 300305
Platyna crown 1293001
Dark grey ALUX DB 703
Black 116700
Black mat 02.12.01.000004 – 809700
Desert oak 0057004
Amaranth oak 0078008
Monument oak 0057006
Mountain oak 0057005
Woodec oak F4703001
Anthracite grey ulti –matt 02.20.71.000001 – 504700

The colours presented are just a visualization and may be different from the actual colours.

Equipment

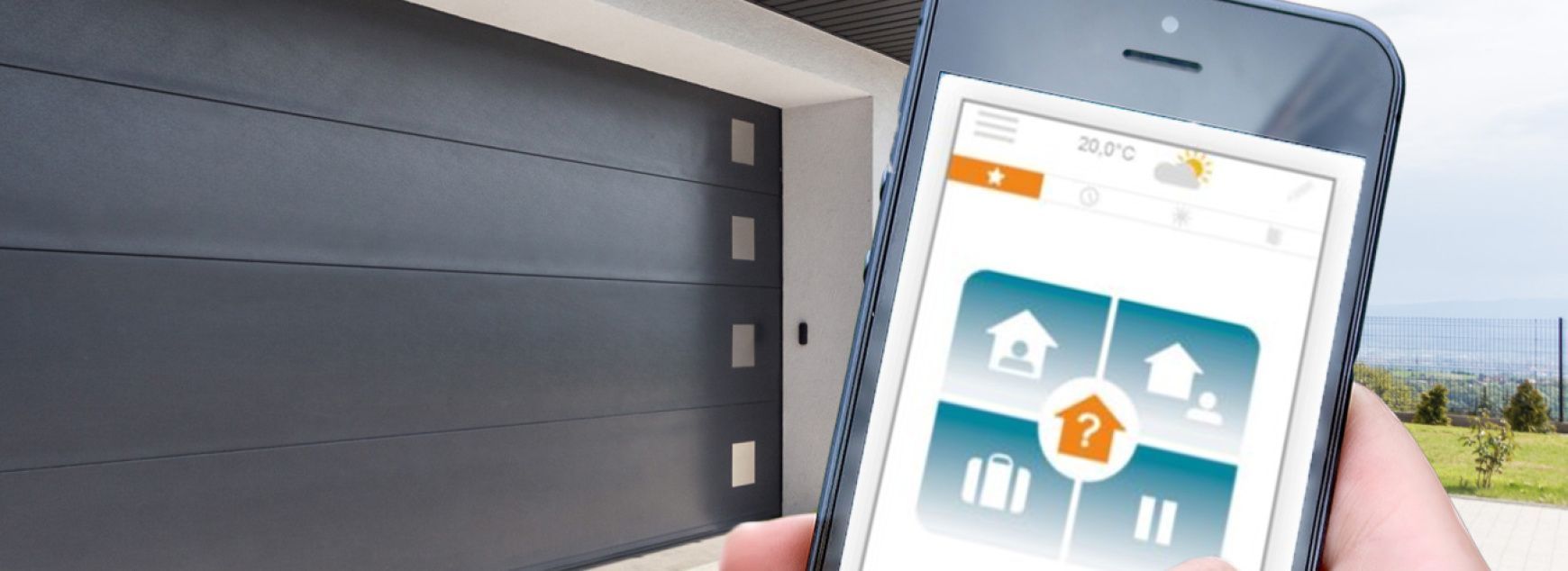

DAKO & Smart Home garage doors

Automatically controlled DAKO garage doors can be included in Smart Home Management Systems and controlled via the Internet from anywhere in the world!
