Okna DA-77
Back to Aluminium Windows

Aluminium windows: DA-77 range

Great possibilities in three system variants: standard, with hidden sash and fire protection.

Very good level

of thermal insulation

Large construction possibilities

for large glazing

Modern design

for demanding projects

Special glass can be used,

improving safety

Request a Quote



DA-77 range of thermally-efficient and durable windows

A system rich in options, designed for the implementation of demanding, modern projects, including large glazing.

The options of using a concealed sash or corner windows allow for a consistent appearance of all window types in the building facade and guarantee exceptional design. Expanded maximum dimensions, modern design and the availability of a concealed sash system make this DA-77 window range a frequent selection for builders. A four-chamber profile with thermal breaks guarantees top thermal insulation, which meets the construction code requirements. The system allows for special glazing, offering energy efficiency, soundproofing or burglar-proofing.

View in the catalogue
Generate PDF file
Uw*

0,89 W/m2K

Installation depth

Sash: 86 mm | Frame: 77 mm

Glazing package

4/18/4/18/4, black warm edge spacer bar

Hinges

surface-mounted

Ug value

0,5 W/m2K

Package thickness

from 21 to 67 mm

Full specification

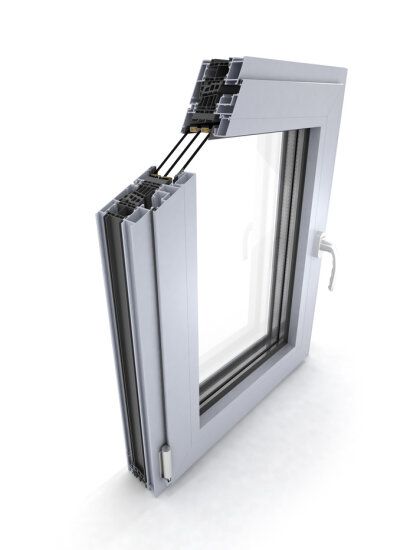

DA-77

Thermal efficiency
Uw*
0,89 W/m2K
*
The value of Uw W/(m²K) is given for the construction of 1230x1480 mm with double glazing with warm frame and glazing Ug=0.5 W/(m²K)
Profile
Profile name
DA-77
Installation depth
Sash: 86 mm | Frame: 77 mm
Number of chambers
4
Thermal break
43 mm
Number of seals
2
Glass
Glazing package
4/18/4/18/4, black warm edge spacer bar
Ug value
0,5 W/m2K
Package thickness
from 21 to 67 mm
Sound insulation of available glazing
---
Fitting
Type
---
Hinges
surface-mounted
Anti-Theft protection
anti-theft latch
Micro-ventilation
yes
Other
Four-stage tilt and slide mechanism | Handle rotation lock with a lifter
Handle
Colours
---
Handle model
1006
Dimensions
Maximum window width – single sash
1700 mm
Maximum window height – single sash
2800 mm
Maximum window width – double sash with a movable post
3400 mm
Maximum window height – double sash with a movable post
2800 mm
Maximum sash area
3 m2
Maximum size of fixed glazing (when using a special glass, maximum area of 7 m2 and weight of 250 kg)
3500 x 2900 mm or 2900 x 3500 mm

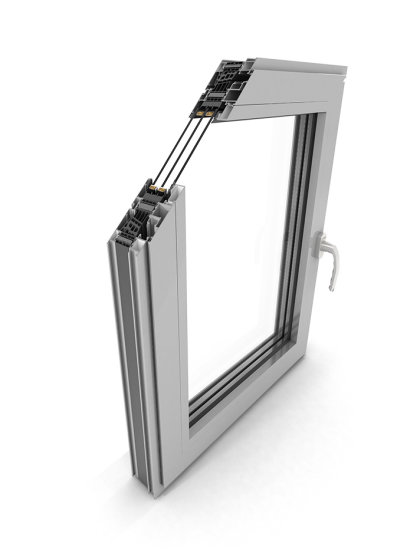

DA-77(SI)

Thermal efficiency
Uw*
0,76 W/m2K
*
The value of Uw W/(m²K) is given for the construction of 1230x1480 mm with double glazing with warm frame and glazing Ug=0.5 W/(m²K)
Profile
Profile name
DA-77
Installation depth
Sash: 86 mm | Frame: 77 mm
Number of chambers
4
Thermal break
43 mm
Number of seals
2
Glass
Glazing package
4/18/4/18/4, black warm edge spacer bar
Ug value
0,5 W/m2K
Package thickness
from 21 to 67 mm
Sound insulation of available glazing
---
Fitting
Type
---
Hinges
surface-mounted
Anti-Theft protection
anti-theft latch
Micro-ventilation
yes
Other
Four-stage tilt and slide mechanism | Handle rotation lock with a lifter
Handle
Colours
---
Handle model
1006
Dimensions
Maximum window width – single sash
1700 mm
Maximum window height – single sash
2800 mm
Maximum window width – double sash with a movable post
3400 mm
Maximum window height – double sash with a movable post
2800 mm
Maximum sash area
3 m2
Maximum size of fixed glazing (when using a special glass, maximum area of 7 m2 and weight of 250 kg)
3500 x 2900 mm or 2900 x 3500 mm

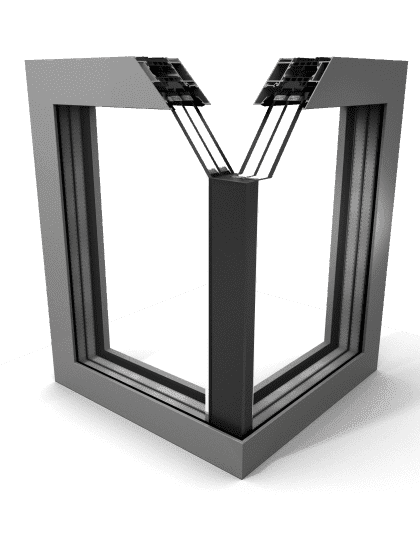

DA-77 corner solution

Thermal efficiency
Uw*
0,8 W/m2K
*
reference window 1230 x 1480 mm
Profile
Profile name
DA-77
Installation depth
Sash: 86 mm | Frame: 77 mm
Number of chambers
4
Thermal break
43 mm
Number of seals
2
Glass
Glazing package
ESG/8/16/ESG8/16/44.2
Ug value
0,6 W/m2K
Package thickness
from 32 mm to 72 mm
Sound insulation of available glazing
from 31 to 47 dB
Fitting
Type
---
Hinges
n/a
Anti-Theft protection
---
Micro-ventilation
---
Other
---
Handle
Colours
---
Handle model
n/a
Sash size
Min. sash width
560 mm x 560 mm x 560 mm
Max. sash width
2400 mm x 3000 mm x 3000 mm
Min. sash height
560 mm x 560 mm x 560 mm
Max. sash height
2400 mm x 3000 mm x 3000 mm
Max. sash weight
150 kg
Max. sash area
3 m2

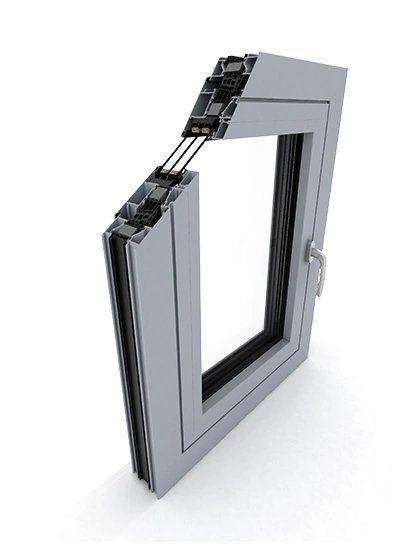

DA-77C opening outwards

Thermal efficiency
Uw*
0,9 W/m2K
*
Glass 4/18/4/18/4 window size 48 7/16 in x 58 4/16 in (1230 mm x 1480 mm)
Profile
Profile name
DA-77C
Installation depth
Frame 77 mm | Sash 86 mm
Number of chambers
4
Thermal break
Thermal spacers 43 and 42 mm
Number of seals
Three seals of two-part EPDM synthetic rubber
Glass
Glazing package
4/18/4/18/4 warm spacer bar
Ug value
0,5 W/m2K
Package thickness
frame – from 13 to 61 mm, sash– from 22 to 70 mm
Sound insulation of available glazing
Rw: from 31 to 47dB
Fitting
Type
---
Hinges
scissor (invisible) or traditional turn-and-tilt hinges (visible)
Anti-Theft protection
---
Micro-ventilation
---
Other
---
Handle
Colours
White, Chrome, Chrome Matt
Handle model
Virage (shand)
Dimensions
Maximum window width – single sash
1400 mm
Maximum window height – single sash
2500 mm
Maximum window width – double sash with a movable post
solution not available in the system
Maximum window height – double sash with a movable post
solution not available in the system
Maximum sash area
3 m2
Maximum size of fixed glazing (when using a special glass, maximum area of 7 m2 and weight of 250 kg)
solution not available in the system
Technical parameters
Water tightness
Class 4, PN-EN 12207:2001
Air permeability
Class E1350, PN-EN 12208:2001
Wind load resistance
up to class C5/B5, PN-EN 12210:2001

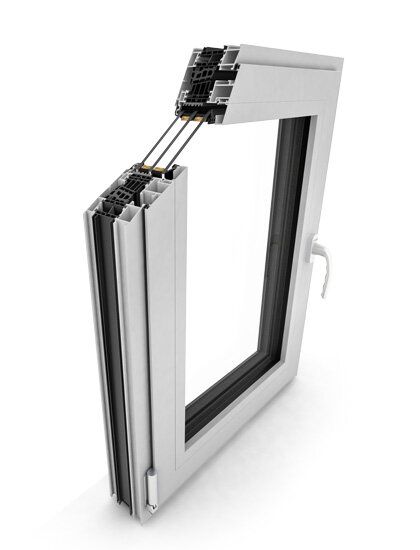

DA-77 US

Thermal efficiency
Uw*
0,8 W/m2K
*
reference window 1230 x 1480 mm, basic glass for a given series
Profile
Profile name
DA-70
Installation depth
Sash: 80,8 mm | Frame: 77 mm
Number of chambers
4
Thermal break
43 mm thermal breaks made of glass-fibre reinforced polyamidem
Number of seals
Three seals made of two-component EPDM synthetic rubber
Glass
Glazing package
4x18x4x18x4, black warm edge spacer bar
Ug value
0,5 W/m2K
Package thickness
15 to 60 mm
Sound insulation of available glazing
Rw: od 31 to 47dB
Fitting
Type
---
Hinges
surface-mounted (optional: concealed hinges)
Anti-Theft protection
anti-theft latch
Micro-ventilation
yes
Other
Handle rotation lock with lifter
Handle
Colours
Standard colour: white, brown, silver | Optional colour: stainless steel, old gold, joinery colour
Handle model
Made of aluminium
Dimensions
Maximum window width – single sash
1700 mm
Maximum window height – single sash
2800 mm
Maximum window width – double sash with a movable post
3400 mm
Maximum window height – double sash with a movable post
2800 mm
Maximum sash area
3 m2
Maximum size of fixed glazing (when using a special glass, maximum area of 7 m2 and weight of 250 kg)
3500 x 2900 mm or 2900 x 3500 mm

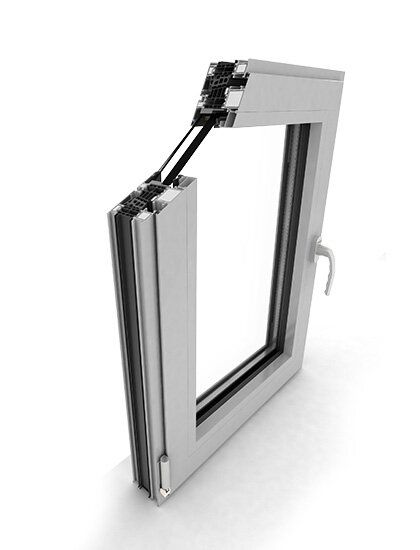

DA-77 EI

Thermal efficiency
Uw*
0,8 W/m2K
*
Uw of windows with sash dimensions 2000 x 1100 mm with 2-chamber glass Ug 0.5 W/(m2K), with warm distance frame and fire protection glass in EI30 class.
Profile
Profile name
DA-77
Installation depth
Sash: 86 mm | Frame: 77 mm
Number of chambers
4
Thermal break
43 mm thermal breaks made of glass-fibre-reinforced polyamide
Number of seals
Two seals made of two-component EPDM synthetic rubber
Glass
Glazing package
5T ESG /12+A/5TESG/12+A/EI 30
Ug value
0,7 W/m2K
Package thickness
41 to 60 mm
Sound insulation of available glazing
Rw: 31 to 42 dB
Fitting
Type
---
Hinges
surface-mounted (optional: concealed hinges)
Anti-Theft protection
anti-theft latch
Micro-ventilation
yes
Other
Handle rotation lock with lifter
Handle
Colours
Standard colour: white, brown, silver | Optional colour: stainless steel, old gold, joinery colour
Handle model
With a key, made of aluminium
Dimensions
Maximum window width – single sash
1600 mm
Maximum window height – single sash
2400 mm
Maximum window width – double sash with a movable post
3200 mm
Maximum window height – double sash with a movable post
2400 mm
Maximum sash area
3 m2
Maximum size of fixed glazing (when using a special glass, maximum area of 7 m2 and weight of 250 kg)
3500 x 2900 mm or 2900 x 3500 mm
Other
Other
automatic drives for turn and tilt windows

Colours

The full range of RAL colours is available in the colour chart

Basic colours

RAL 9016 White
Silver - RAL 9006
RAL 8019
RAL palette color

The colours presented are just a visualization and may be different from the actual colours.

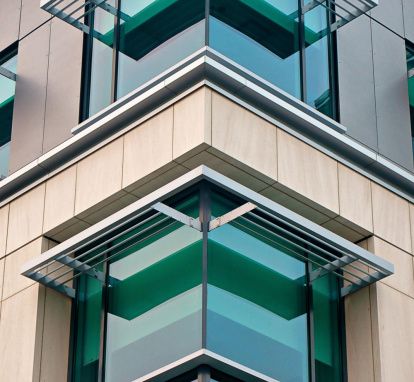

Corner windows manufactured in the DA-77 system are primarily products used in modern buildings, where the visual effect meets the expectations of current architectural designs.

The shape of the building acquires a light and very modern character. In addition to their visual appeal, those windows provide free access of light to the buildings, in which they are installed. The glass surface is larger, allowing up to 20% more sunlight to enter the interior (depending on the size of the window).

What sets the DA-77 EI range apart in the fire safety standard?

The construction is based on the DA-77 system, thanks to which it is characterised by high thermal and sound insulation, as well as water and air tightness. Therefore, the DA-77 EI system combines the advantages of a classic window system with the properties of fireproof partitions.

The buildings meet all the requirements of current regulations and standards, especially those concerning energy savings and environmental protection, while ensuring adequate fire safety. The system is classified as non-fire spreading (NRO). What sets the DA-77 EI range apart in the fire safety standard?

  • Profiles with a three-chamber construction, where the central part is the insulation chamber between the thermal breaks with a width of 43 or 42 mm
  • Fire insulation elements in the internal chambers of aluminium sections and special accessories and materials functioning in the space between the aluminium sections and the glass
  • A wide range of glass thicknesses allows the use of various types of insulating glass units, including two-chamber sets
  • Fittings used in DA-77 EI are standard burglar-proof RC2 class





Features

Handles

Handles

Details
Glass

Glass

Details
Muntins and strips

Muntins and strips

Details
Fittings

Fittings

Details
Opening sensors

Opening sensors

Details
