A modern alternative to exterior roller shutters
giving the building structure lightness and modernity
and the amount of light entering the room
guaranteeing aesthetic appearance and stability
protection against overheating in summer and cooling in winter

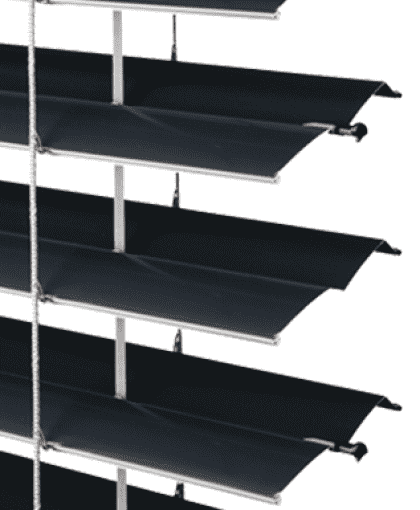

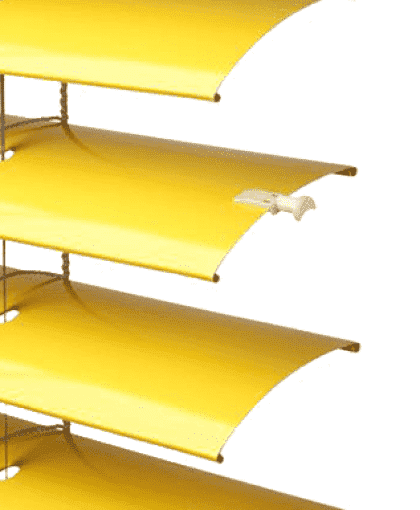

DAKO offers two options of slats for exterior blinds. The key element of the blinds, which mainly influences their final appearance, are slats. Slats are aluminium elements with a specific shape, which create the overall shape of the blinds. The slats appear in two shapes and widths – in a Z-shape, with a width of 90 mm, and in a C-shape, with a width of 80 mm.

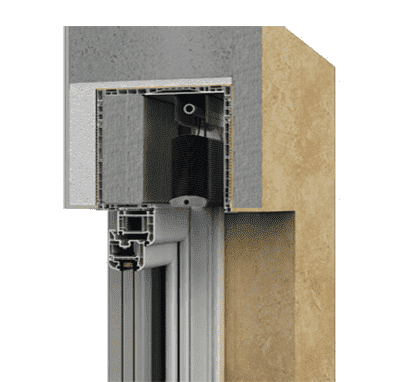

In this variant, the blind profiles are placed in a PVC box (box size: 245 x 255 mm). A top-mounted box allows a compact connection of blinds directly to the window and the assembly of the entire set in the opening. Due to access to the mechanism of the blind from the outside, the entire internal part is reliably insulated, which eliminates the risk of thermal bridges.
Installation of this type of blinds should be considered in advance, so that the opening's size takes into account the presence of the box. In the ZFN blinds, there is also the possibility of using a mosquito net that complements the product's functionality.
The system uses solid, 60×87 mm aluminium guides attached to the window frame.

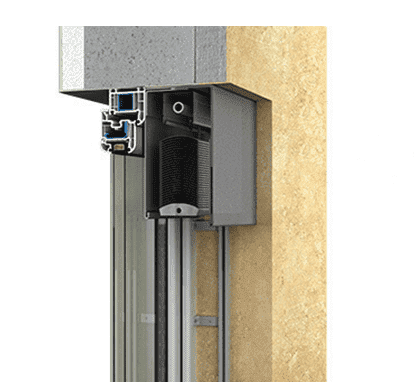

In this version, the mechanism of the blinds, together with the profiles, is hidden behind the appropriate length of the cover plates, which also protects against adverse weather conditions. Sheathing metal sheets can be matched in colour to the blinds profiles, while maintaining a uniform appearance of the building.
The ZFS blinds system is ideal for buildings, where finishing works have already been completed. The blinds can be mounted directly in the window opening or on the façade. It is also possible to build a box, so that the blinds will gain a flush-mounted product's functionality.
The system uses aluminium guides with dimensions of 20x22 mm, mounted on adjustable hooks.
Colours of exterior window blinds & shades
A diverse range of colour options allows giving products an individual style, emphasizing the investment's nature. Blinds slats are available in various colours:
The colours presented are just a visualization and may be different from the actual colours.

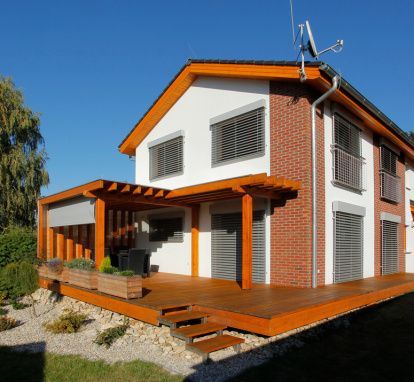

The use of exterior blinds as an element of the building's façade allows you to give the building its lightness. The special product is dedicated to objects with a large area of windows or glass façades. Installation of front-mounted blinds is carried out on the outside of the building. Aluminium guides, in which the guards are mounted, ensure the blinds stability in the wind and increase the level of safety.
Thanks to the option of free adjustment of the angle of the slats, they allow you to set the desired degree of darkening of the rooms, creating a pleasant atmosphere of the interior and reflecting most of the sun's rays. The use of blinds reduces the cost of air conditioning. In addition to the function of darkening and protection, exterior blinds provide a modern finish to the building.
