Okna DPP-70
Back to PVC Windows

PVC windows: DPP-70 range

A thermally-efficient classic window - opening outwards

Optimal thermal performance

providing warm interiors

Extensively equipped fittings

with possibility of micro ventilation

High-quality Class A profile

affecting quality and durability

A proven solution

at favourable prices

Request a Quote
View in the catalogue
Generate PDF file
Uw*

1,3 W/m2K

Installation depth

70 mm

Hinges

Concealed scissor hinges

Handle model

Vigilant / New York

Burglar-proof latches

4 pcs.

Default glazing package

4/16/4

Full specification



The DPP-70 range of windows is a guarantee of good thermal insulation parameters at a great price

The high quality of the thermally-efficient 5-chamber Class A profile, energy-efficient double-glazing package with a gas layer, as well as functional fitting with micro ventilation and four-stage tilt make the DPP-70 windows a frequent selection of customers looking for cost-efficient, proven solutions.

Colours

Basic colours

Golden oak 2178001
Nut 2178007
Winchester 49240
Swamp oak 2052089
Anthracite 701605
Dark grey silk 4367003
Woodec oak F4703001

The colours presented are just a visualization and may be different from the actual colours.

Features

Handles (opening outwards)

Handles (opening outwards)

Details
Glass

Glass

Details
Muntins and strips

Muntins and strips

Details
Fittings

Fittings

Details
Opening sensors

Opening sensors

Details

Check where to buy our products

Request a Quote
Get inspired by DAKO products

DPP-70

Thermal efficiency
Uw*
0,96 W/m2K
*
reference window 1230 x 1480 mm

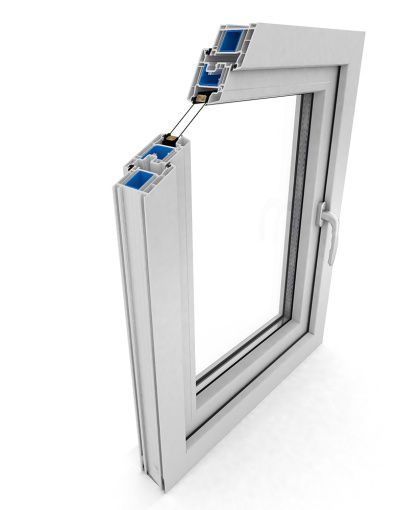

Profile
Profile name
DPP-70
Installation depth
70 mm
Number of chambers
5
Thermal break
none
Number of seals
2
Glass
Glazing package
4/16/4
Ug value
1,0 W/m2K
Package thickness
up to 42 mm
Sound insulation of available glazing
---
Fitting
Type
---
Hinges
surface-mounted
Anti-Theft protection
2 anti-theft latches
Micro-ventilation
yes
Other
---
Handle
Colours
---
Handle model
1006
Dimensions
Maximum window width – single sash
1500 mm
Maximum window height – single sash
2575 mm
Maximum window width – double sash with a movable post
2080 mm
Maximum window height – double sash with a movable post
2400 mm
Maximum sash area
2,25 m2
Maximum size of fixed glazing (when using a special glass, maximum area of 7 m2 and weight of 250 kg)
3500 x 2900 mm lub 2900 x 3500 mm
