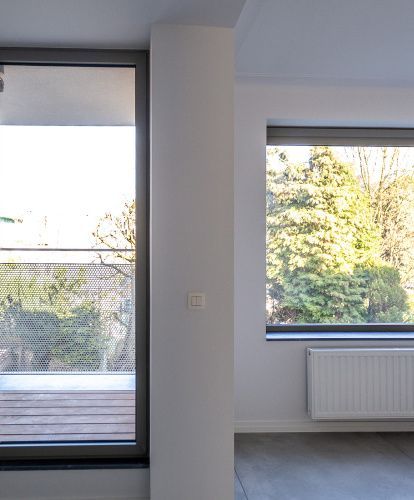

Okna aluminiowe DA-65EFUS
Back to Aluminium Windows

Aluminium windows: DA-65 EFUS range

Innovative solution with concealed door leaf option

Modern decor

elegant design

Even more light

smaller width of the movable post

Elegance and modernism

uniform window plane

Optimal parameters:

thermal and sound

Request a Quote

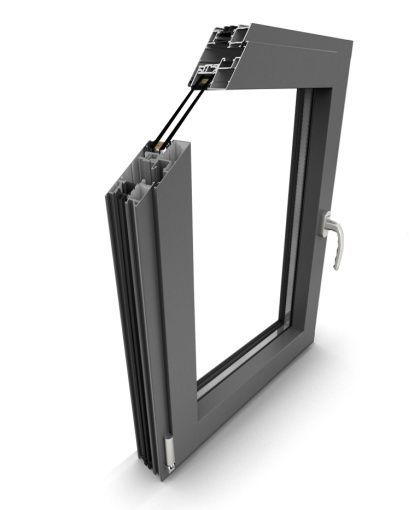

Okna z serii DA-65EFUS
View in the catalogue
Generate PDF file
Uw*

1.4 W/m2K

Installation depth

Frame 65 mm, Leaf 74 mm

Folding width

72 mm

Hinges

Hidden

Handle model

1006

Burglar protection

burglar-proof latch

Glazing package

4/16/4

Full specification



The DA-65 EFUS system, thanks to its hidden sash and high thermal parameters, perfectly meets the expectations of the most demanding customers

Hidden sash allows for a uniform window plane, giving the impression of elegance and modernism and a larger glazing surface, so that the interior gains more natural light.

Colours

The full range of RAL colours is available in the colour chart

Basic colours

RAL 9016 White
Silver - RAL 9006
RAL 8019
RAL palette color

The colours presented are just a visualization and may be different from the actual colours.

Features

Handles

Handles

Details
Glass

Glass

Details
Muntins and strips

Muntins and strips

Details
Fittings

Fittings

Details
Opening sensors

Opening sensors

Details

Check where to buy our products

Request a Quote
Get inspired by DAKO products

DA-65EFUS

Thermal efficiency
Uw*
1,3 W/m2K
*
reference window 1230 x 1480 mm, basic glass for a given series

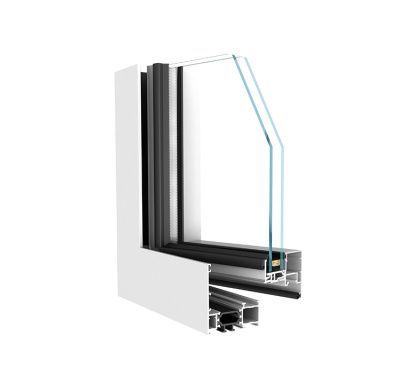

Profile
Profile name
DA-65EFUS
Installation depth
Frame: 65 mm | Sash: 74 mm
Number of chambers
3
Thermal break
Thermal breaks 30 mm made of fiber glass reinforced by polyamide
Number of seals
Two seals of two-component EPDM synthetic rubber
Glass
Glazing package
1,3 W/m2K
Ug value
1,0 W/m2K
Package thickness
24 to 30 mm
Sound insulation of available glazing
---
Fitting
Type
---
Hinges
concealed
Anti-Theft protection
anti-theft latch
Micro-ventilation
yes
Other
Four-stage tilt and slide mechanism | Handle rotation lock with a lifter
Handle
Colours
---
Handle model
1006
Dimensions
Maximum window width – single sash
1250 mm
Maximum window height – single sash
2200 mm
Maximum window width – double sash with a movable post
3000 mm
Maximum window height – double sash with a movable post
2200 mm
Maximum sash area
3 m2
Maximum size of fixed glazing (when using a special glass, maximum area of 7 m2 and weight of 250 kg)
3500 x 2900 mm or 2900 x 3500 mm
