DA-77 EI

Uw*

0,8 W/m²K

Uw of windows with sash dimensions 2000 x 1100 mm with 2-chamber glass Ug 0.5 W/(m2K), with warm distance frame and fire protection glass in EI30 class.

Profile name

DA-77

Installation depth

Sash: 86 mm | Frame: 77 mm

Number of chambers

Thermal break

43 mm thermal breaks made of glass-fibre-reinforced polyamide

Number of seals

Two seals made of two-component EPDM synthetic rubber

Glazing package

5T ESG /12+A/5TESG/12+A/EI 30

Ug value

0,7 W/m²K

Package thickness

41 to 60 mm

Sound insulation of available glazing

Rw: 31 to 42 dB

Type

---

Hinges

surface-mounted (optional: concealed hinges)

Anti-Theft protection

anti-theft latch

Micro-ventilation

yes

Other

Handle rotation lock with lifter

Colours

Standard colour: white, brown, silver | Optional colour: stainless steel, old gold, joinery colour

Handle model

With a key, made of aluminium

Maximum window width – single sash

1600 mm

Maximum window height – single sash

2400 mm

Maximum window width – double sash with a movable post

3200 mm

Maximum window height – double sash with a movable post

2400 mm

Maximum sash area

3 m²

Maximum size of fixed glazing (when using a special glass, maximum area of 7 m2 and weight of 250 kg)

3500 x 2900 mm or 2900 x 3500 mm

Other

automatic drives for turn and tilt windows

View product

DA-77

Great possibilities in three system variants: standard (also in the corner option), with hidden sash and fire protection.

View product

DA-FerroLine

Broad possibilities of narrow window profiles in aluminum windows.

View product

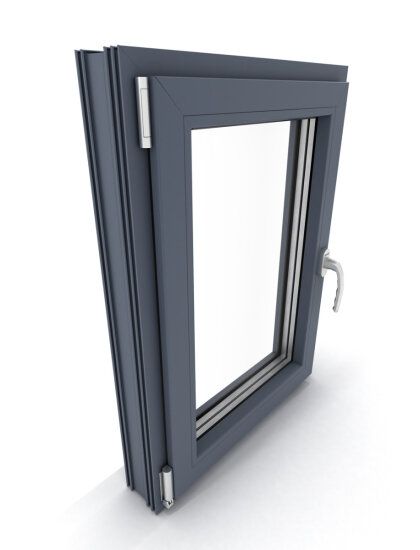

DA-65EF
