Back to HST patio doors

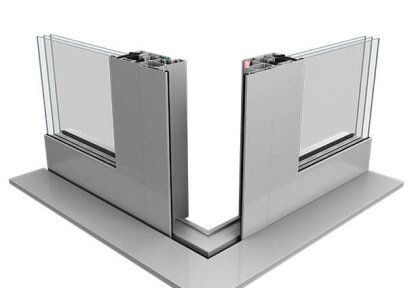

DA-77 HST corner solution

DA-77 HST corner solution

Thermal efficiency
Uw*
1,1 W/m2K
*
reference construction 2460 mm x 2180 mm
Profile
Profile name
DA-77
Installation depth
Sash: 77 mm | Frame: 174 mm
Number of chambers
3
Thermal break
Thermal breaks 35 mm made of fiber glass reinforced by polyamide
Number of seals
Two seals of two-component EPDM synthetic rubber
Glass
Glazing package
4x18x4x18x4
Ug value
0,5 W/m2K
Package thickness
from 14 to 58 mm
Sound insulation of available glazing
Rw: from 31 to 47 dB
Fitting
Type
Lift -sliding fittings
Hinges
n/a
Anti-Theft protection
n/a
Micro-ventilation
yes
Other
n/a
Handle
Colours
---
Handle model
Made of aluminium
Maximum construction dimensions
Width
6500 mm
Height
3000 mm
Sash size
Min. sash width
900 mm
Max. sash width
3300 mm
Min. sash height
1900 mm
Max. sash height
3200 mm
Max. sash weight
300 kg
Max. sash area
---
