Okna DDF-78
Back to Wooden Windows

Wooden windows DDF-78 range

Classic solutions enriched by the beauty of wood

Modern window finish

a simple form that offers an impression of lightness

Excellent performance

high thermal insulation and soundproofing

The ultimate comfort

thanks to using the highest quality materials

Request a Quote

DAKO wooden windows from the DDF-78 range

  • Window finish in a modern, simple form, in line with current trends
  • Optimum thermal insulation and soundproofing parameters in accordance with construction standards
  • The ultimate comfort
  • Three wood types: pine, meranti or spruce

DAKO DDF-78, premium wooden range of windows, fully utilising the extraordinary benefits of carefully selected, natural material. The simple form of the profile shape gives the windows a modern character and perfectly fits the trends of minimalist architecture. Advanced technology used in the production of the windows has gained customer recognition, confirmed by awards of industry experts.

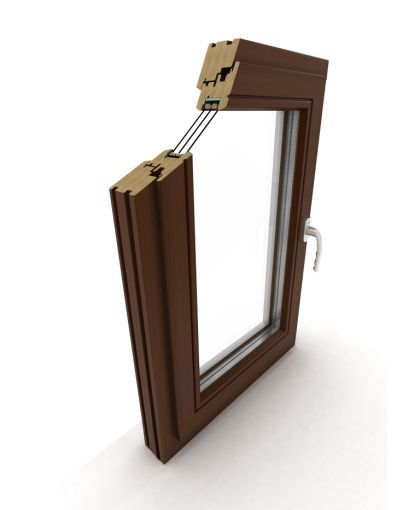

Okna drewniane DAKO DDF-78
View in the catalogue
Generate PDF file
Uw*

0.89 W/m2K

Installation depth

78 mm

Hinges

Surface-mounted

Handle model

1006

Burglar-proof latches

1 pc.

Glazing package

4/14/4/14/4

Full specification

Colours

Transparent colours: pine

Light grey azure
Dark grey azure
Pine classic – K 077
Light oak classic – K 006
Old pine classic – K 073
Chocolate brown – PL 1086
Teak classic – K 085
Mahogany classic – K 045
Palisander classic – K 048
Nut classic – K 010

Transparent colours: meranti

Light grey azure
Dark grey azure
Pine classic – K 077
Light oak classic – K 006
Old pine classic – K 073
Chocolate brown – PL 1086
Teak classic – K 085
Mahogany classic – K 045
Palisander classic – K 048
Nut classic – K 010

The colours presented are just a visualization and may be different from the actual colours.

Features

Handles

Handles

Details
Glass

Glass

Details
Muntins and strips

Muntins and strips

Details
Fittings

Fittings

Details
Opening sensors

Opening sensors

Details

Check where to buy our products

Request a Quote
Get inspired by DAKO products

DDF-78

Thermal efficiency
Uw*
0,89 W/m2K
*
reference window 1230 x 1480 mm, basic glass for a given series
Profile
Profile name
DDF-78
Installation depth
78 mm
Number of chambers
n/a
Thermal break
n/a
Number of seals
3
Glass
Glazing package
4/14/4/14/4
Ug value
0,6 W/m2K
Package thickness
40 mm
Sound insulation of available glazing
---
Fitting
Type
---
Hinges
surface-mounted
Anti-Theft protection
1 anti-theft latch for Tilt and Turn
Micro-ventilation
yes
Other
Handle rotation lock with lifter
Handle
Colours
---
Handle model
1006
Dimensions
Maximum window width – single sash
1500 mm
Maximum window height – single sash
2525 mm
Maximum window width – double sash with a movable post
2080 mm
Maximum window height – double sash with a movable post
2525 mm
Maximum sash area
3 m2
Maximum size of fixed glazing (when using a special glass, maximum area of 7 m2 and weight of 250 kg)
3500 x 2900 mm or 2900 x 3500 mm
