Okna DDR-78
Back to Wooden Windows

Wooden windows: DDR-78 range

The rustic charm of subtle milling

Stylised look

rustic finish

Decorative milling

external edges of the sash, frame and glazing slats

Excellent performance

high thermal insulation and soundproofing

Request a Quote

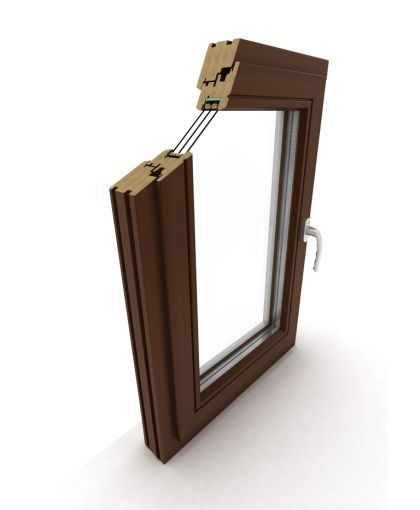

DAKO wooden windows from the DDR-78 range

  • Unique shape finish in a classic rustic style
  • Decorative milling accenting the character of stylish interiors, stylised edges of the outer leaves, frame and glazing slats
  • Very good thermal insulation and soundproofing giving comfort of use
  • Four wood types: pine, larch, meranti or spruce
Okna DDR-78
View in the catalogue
Generate PDF file
Uw*

0.89 W/m2K

Installation depth

78 mm

Hinges

Surface-mounted

Handle model

1006

Burglar-proof latches

1 pc.

Glazing package

4/14/4/14/4

Full specification

Colours

Transparent colours: pine, larch, spruce
Pine classic – K 077
Light oak classic – K 006
Old pine classic – K 073
Chocolate brown – PL 1086
Teak classic – K 085
Mahogany classic – K 045
Palisander classic – K 048
Nut classic – K 010
Transparent colours: meranti
Pine classic – K 077
Light oak classic – K 006
Old pine classic – K 073
Chocolate brown – PL 1086
Teak classic – K 085
Mahogany classic – K 045
Palisander classic – K 048
Nut classic – K 010

The colours presented are just a visualization and may be different from the actual colours.

Features

Handles
Handles
Details
Glass
Glass
Details
Muntins and strips
Muntins and strips
Details
Fittings
Fittings
Details
Opening sensors
Opening sensors
Details

Check where to buy our products

Request a Quote
Get inspired by DAKO products

DDR-78

Thermal efficiency
Uw*
0,89 W/m2K
*
reference window 1230 x 1480 mm, basic glass for a given series
Profile
Profile name
DDR-78
Installation depth
78 mm
Number of chambers
n/a
Thermal break
n/a
Number of seals
3
Glass
Glazing package
4/14/4/14/4
Ug value
0,6 W/m2K
Package thickness
40 mm
Sound insulation of available glazing
---
Fitting
Type
---
Hinges
surface-mounted
Anti-Theft protection
1 anti-theft latch for Tilt and Turn
Micro-ventilation
yes
Other
Handle rotation lock with lifter
Handle
Colours
---
Handle model
1006
Dimensions
Maximum window width – single sash
1500 mm
Maximum window height – single sash
2525 mm
Maximum window width – double sash with a movable post
2080 mm
Maximum window height – double sash with a movable post
2525 mm
Maximum sash area
3 m2
Maximum size of fixed glazing (when using a special glass, maximum area of 7 m2 and weight of 250 kg)
3500 x 2900 mm or 2900 x 3500 mm
